Node library
Every node, explained.
Triggers start a flow, conditions shape it, execution paces it and actions make it happen. Queries read the device back into the logic. Most have a walkthrough you can watch in about a minute, and every one has a documentation page.
- 50
- nodes
- 5
- kinds
- 45
- walkthroughs
Pick a kind
Triggers

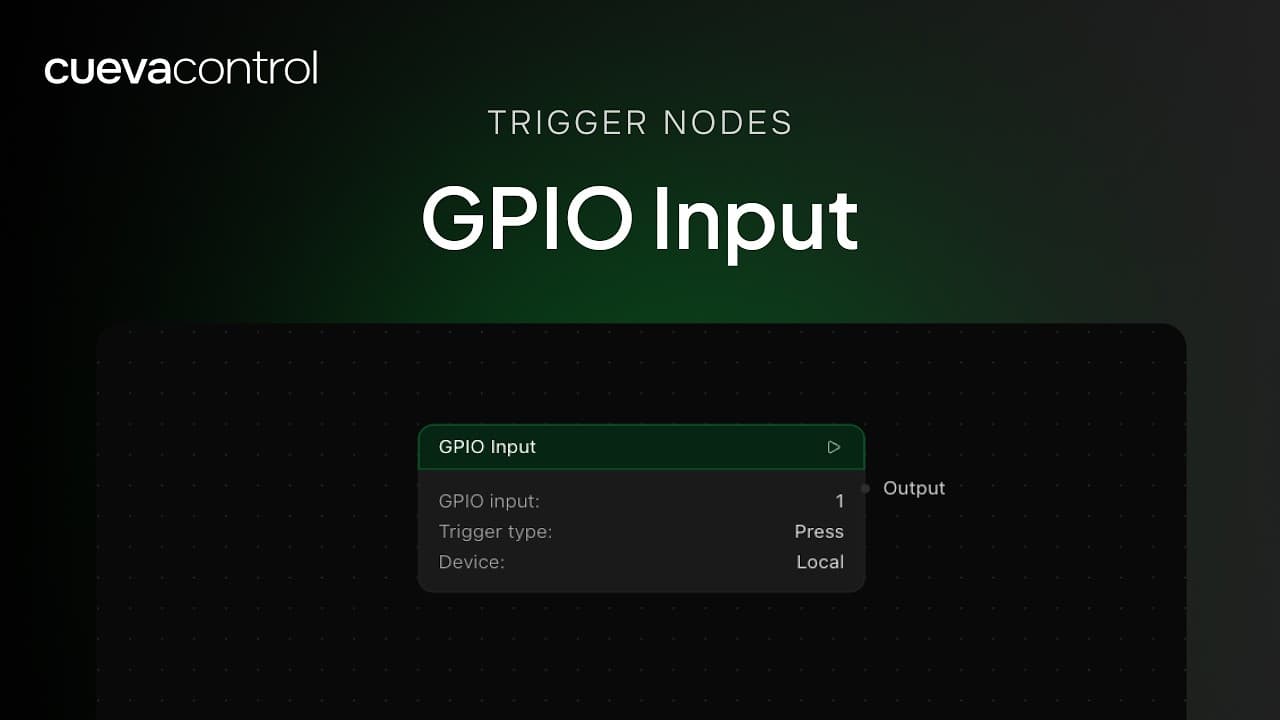

15GPIO Input
Digital input pin

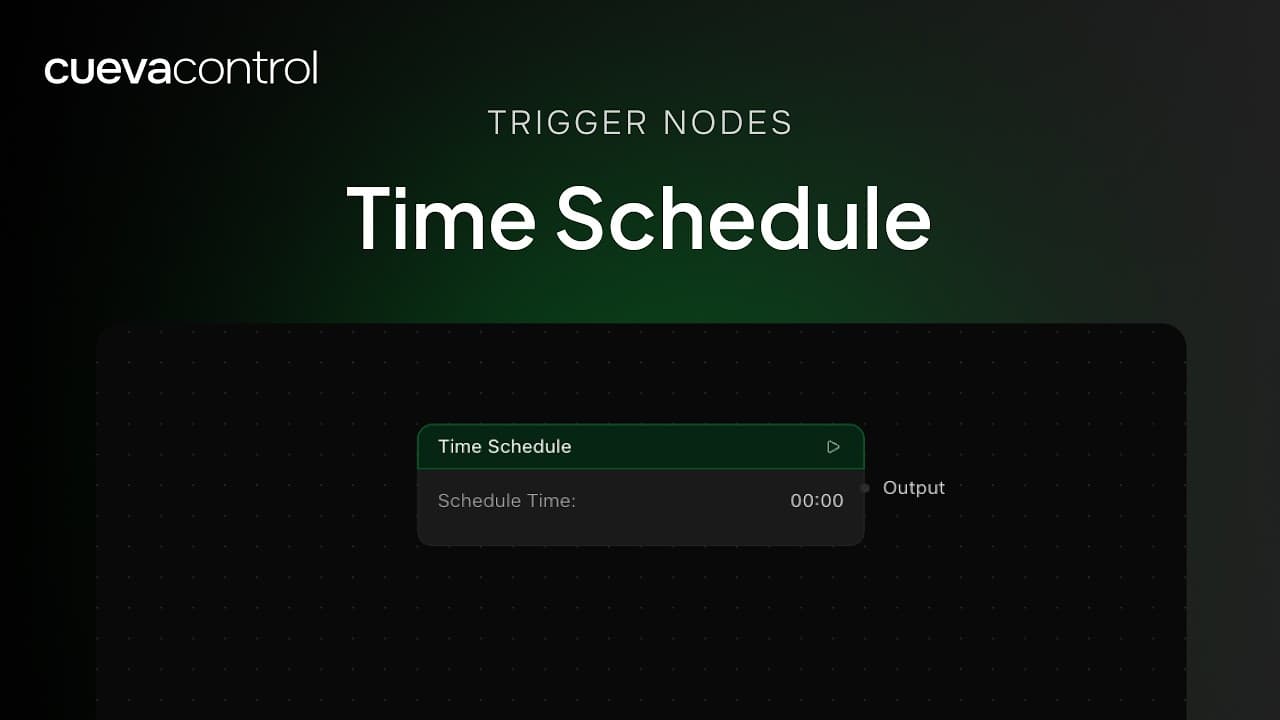

Time Schedule
Fire at a specific time

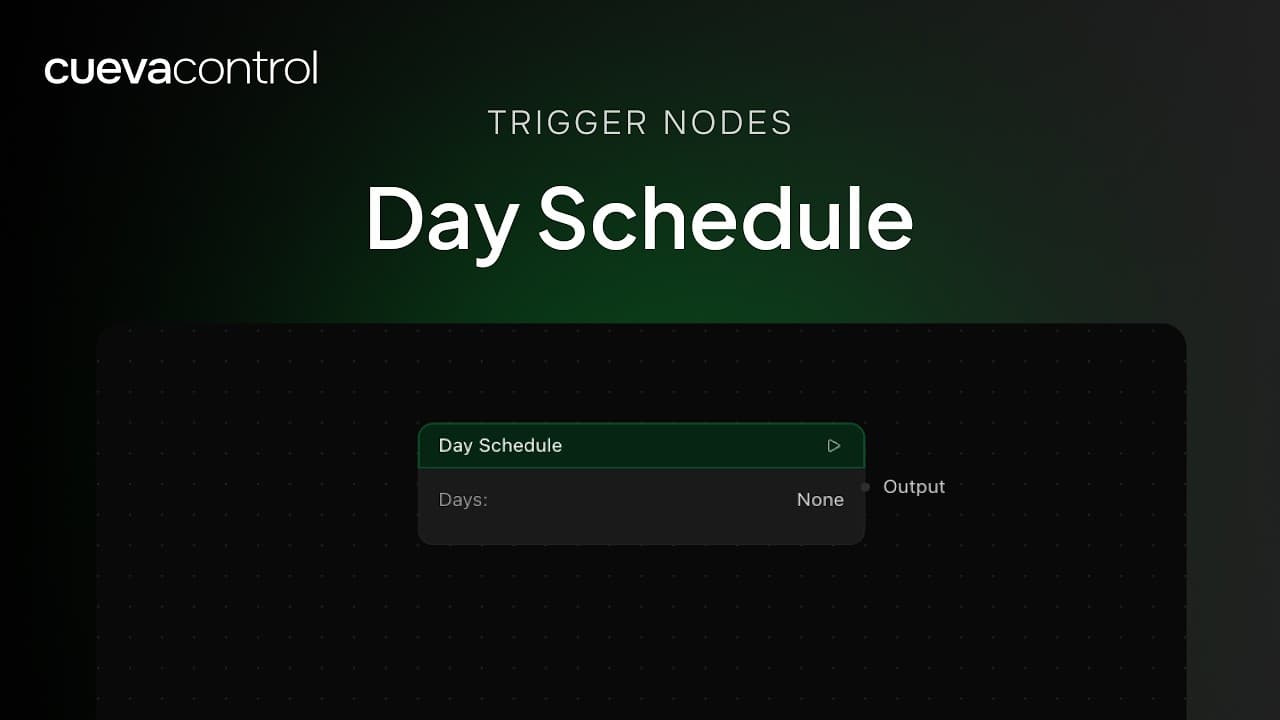

Day Schedule
Fire on day of week

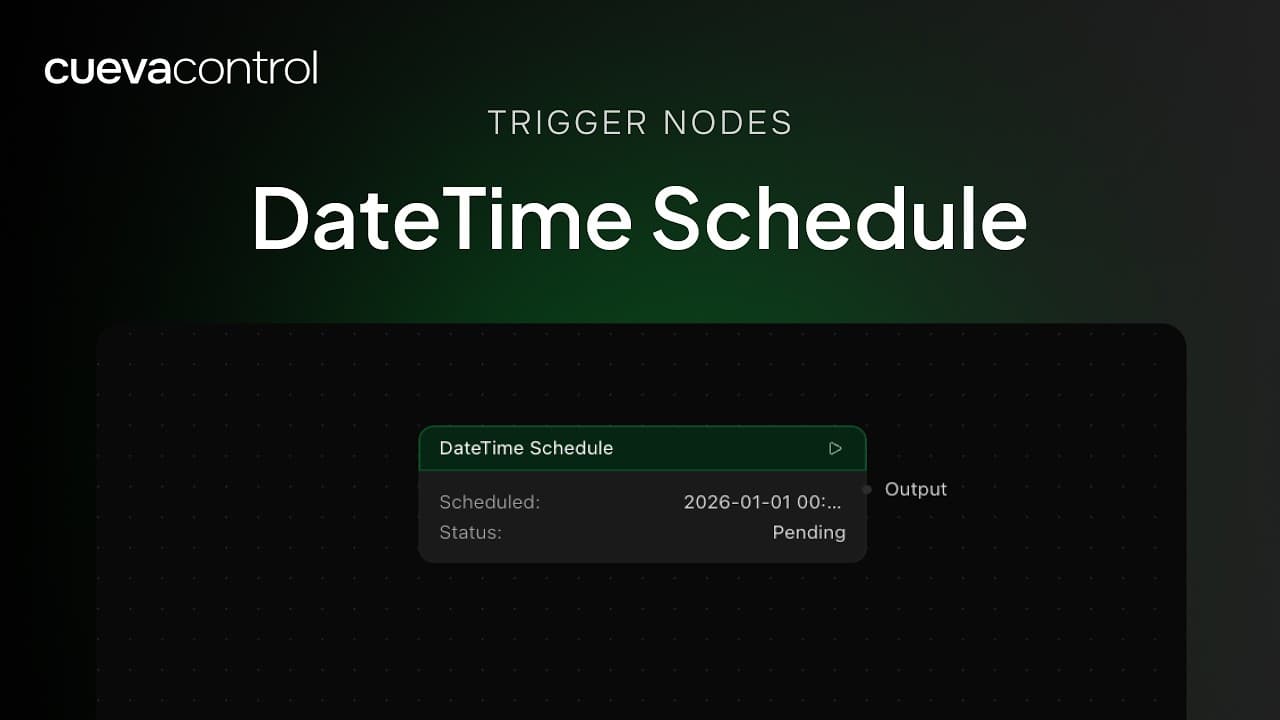

DateTime Schedule
Date + time combination

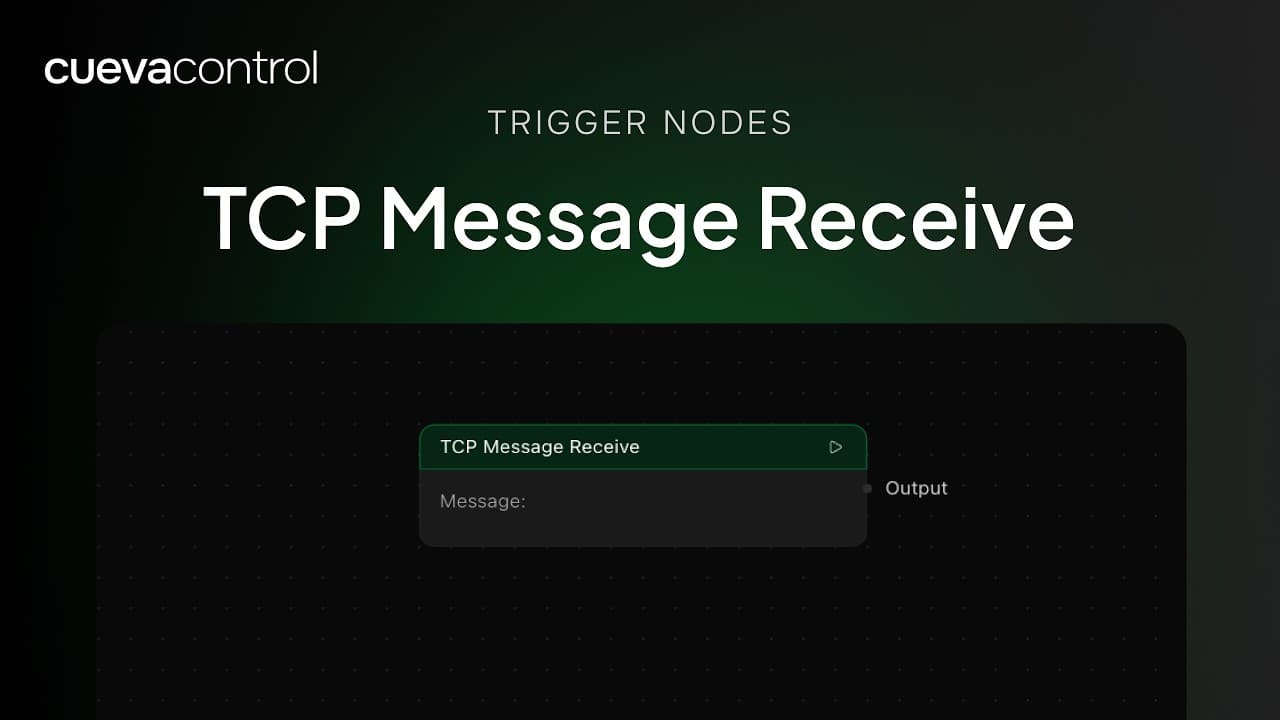

TCP Message Receive
Incoming TCP string

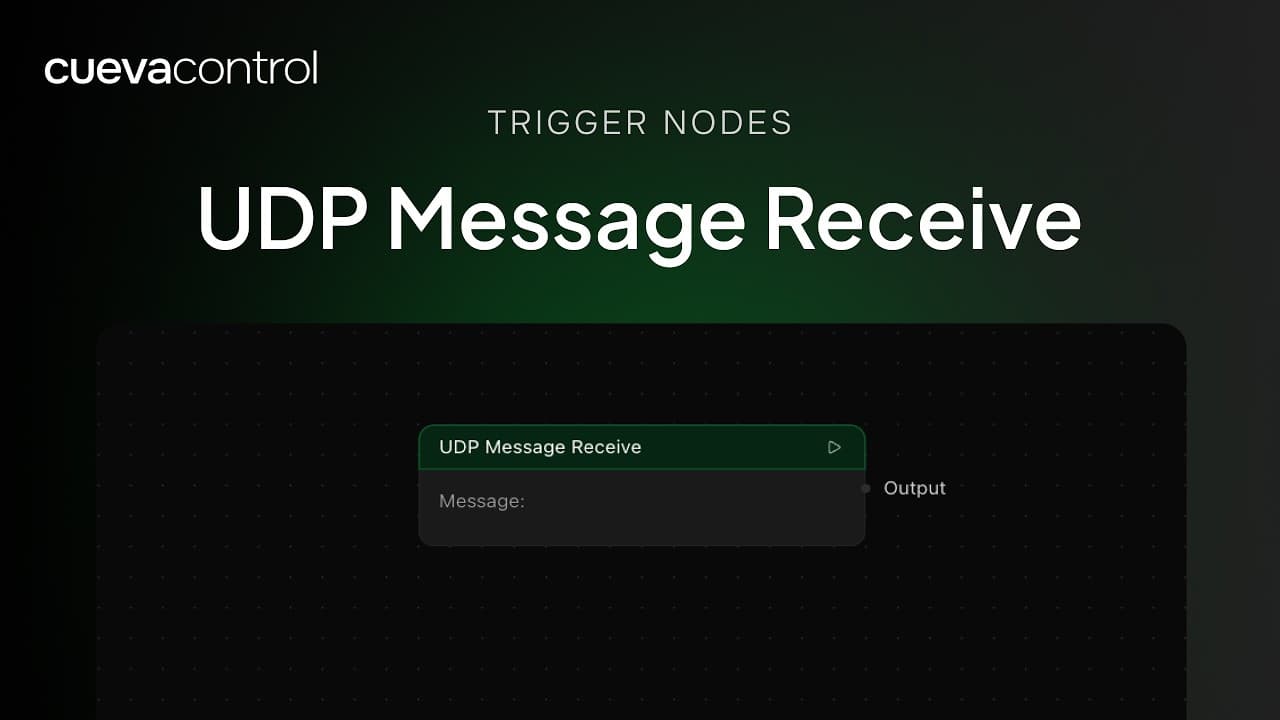

UDP Message Receive
Incoming UDP packet

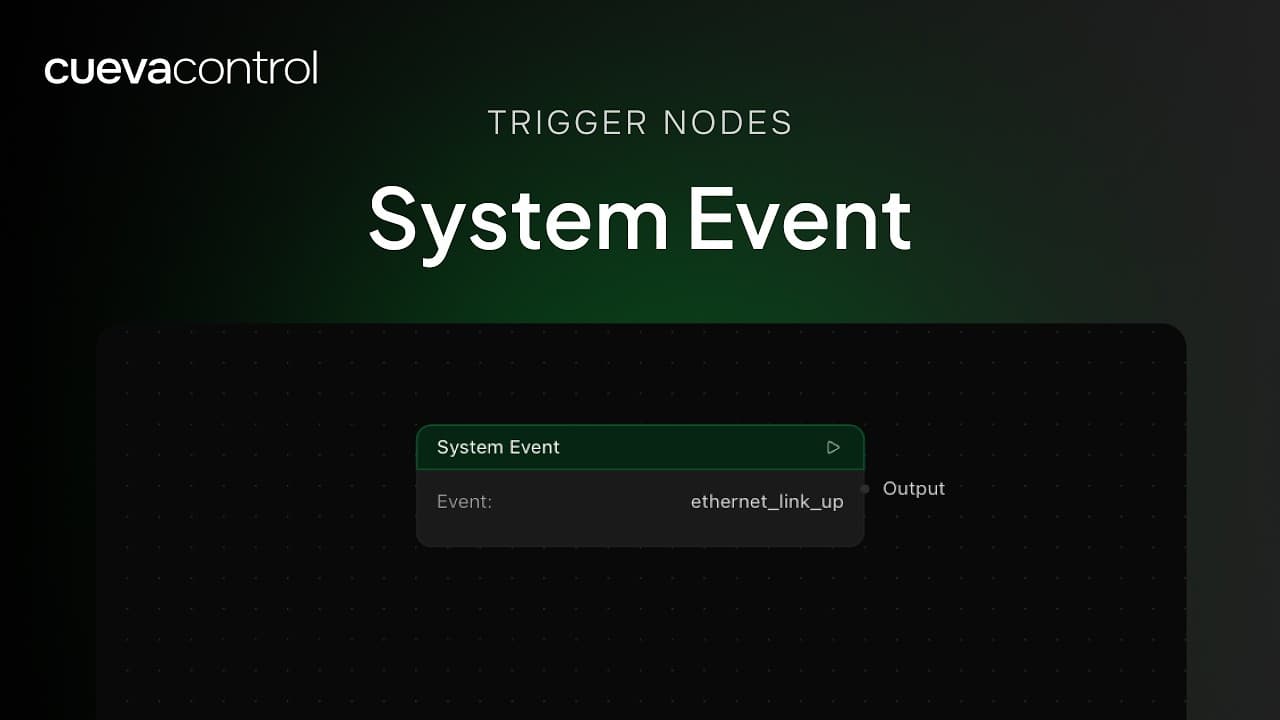

System Event
Internal system events

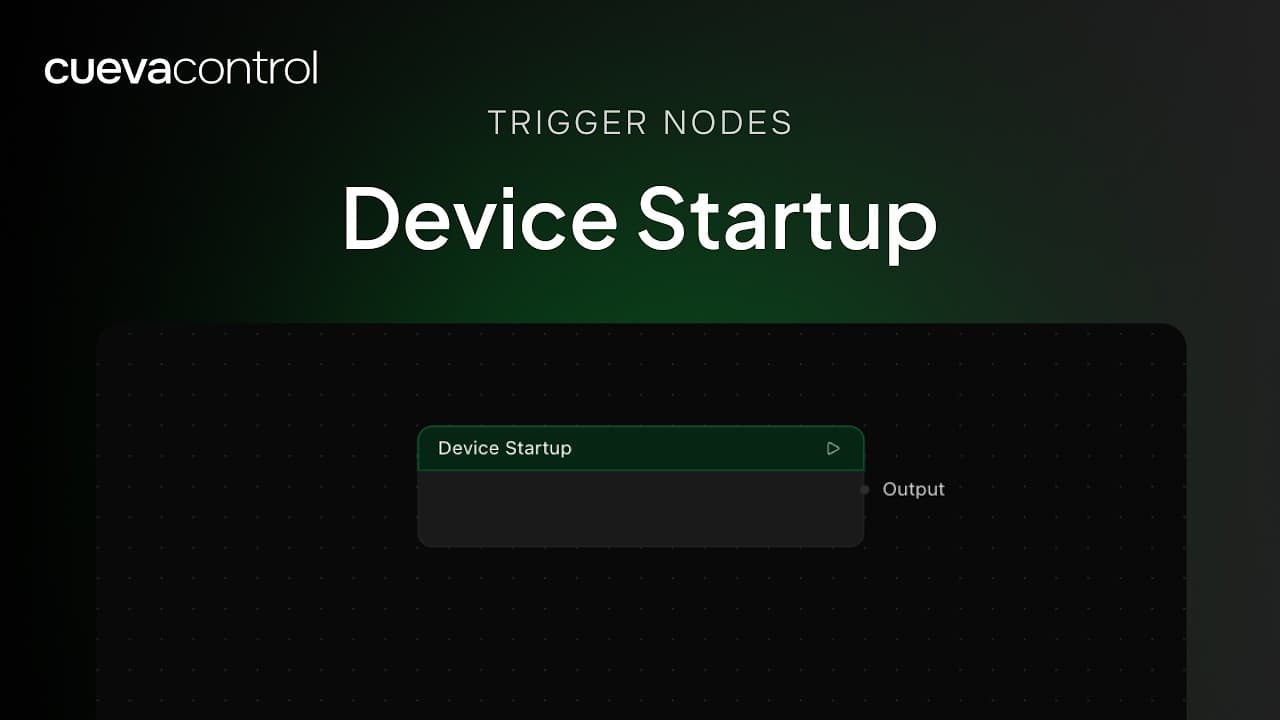

Device Startup
Runs once on boot

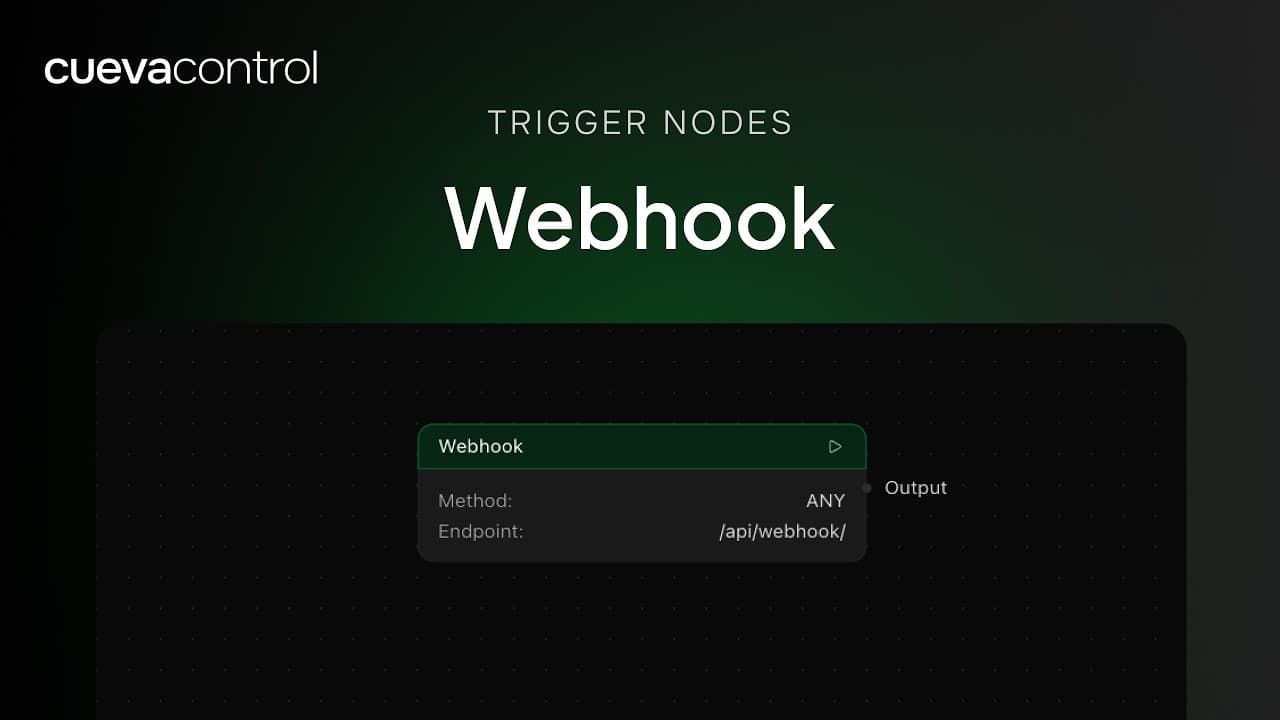

HTTP Webhook
Inbound HTTP request

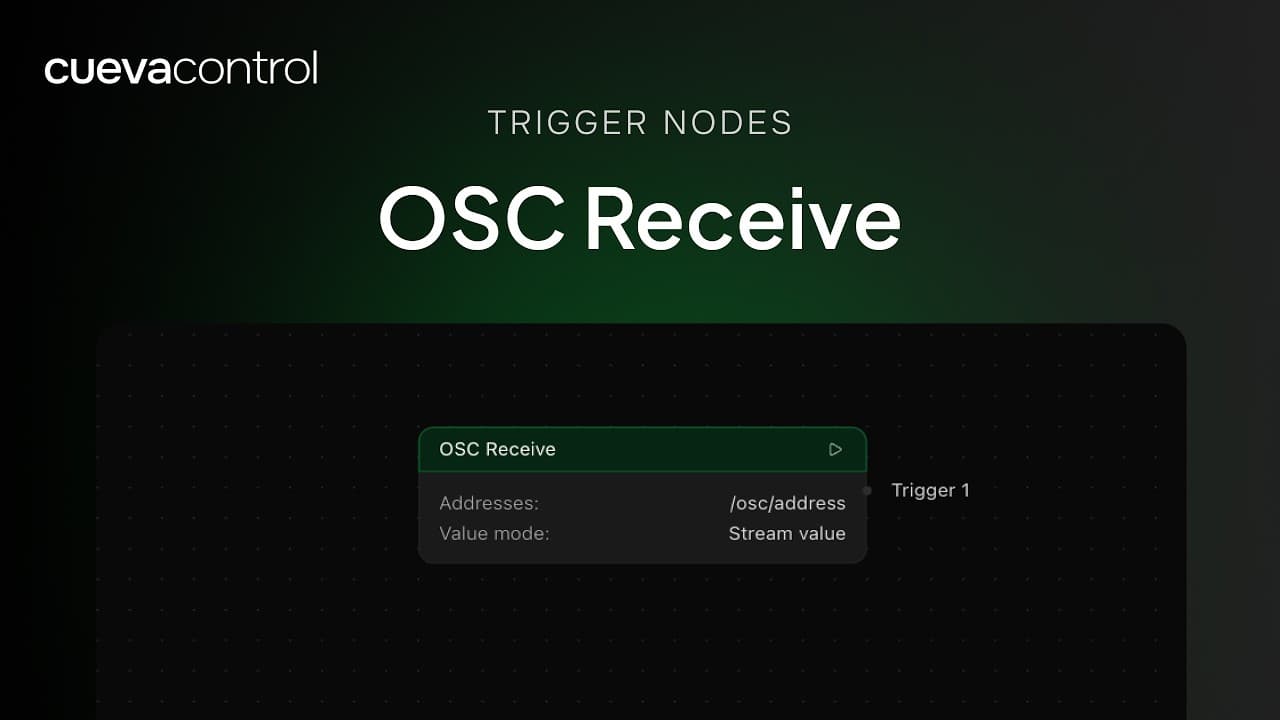

OSC Receive
OSC address pattern

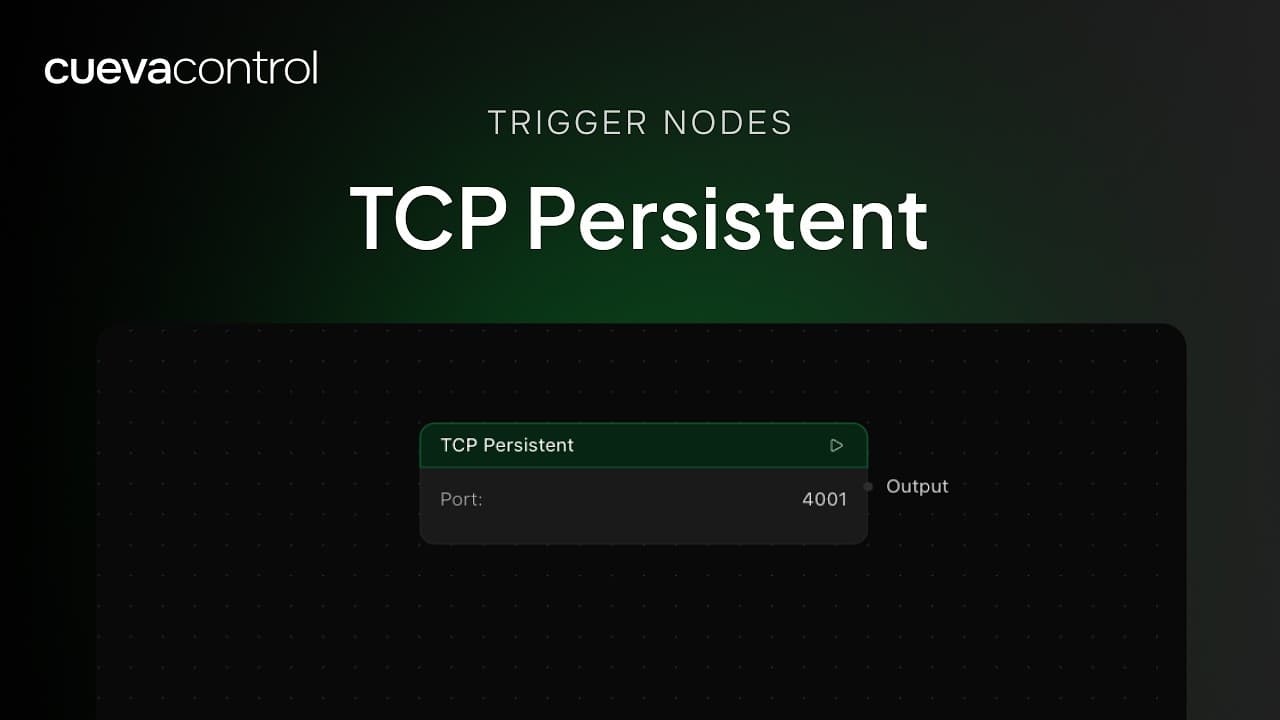

TCP Persistent
Persistent TCP connection

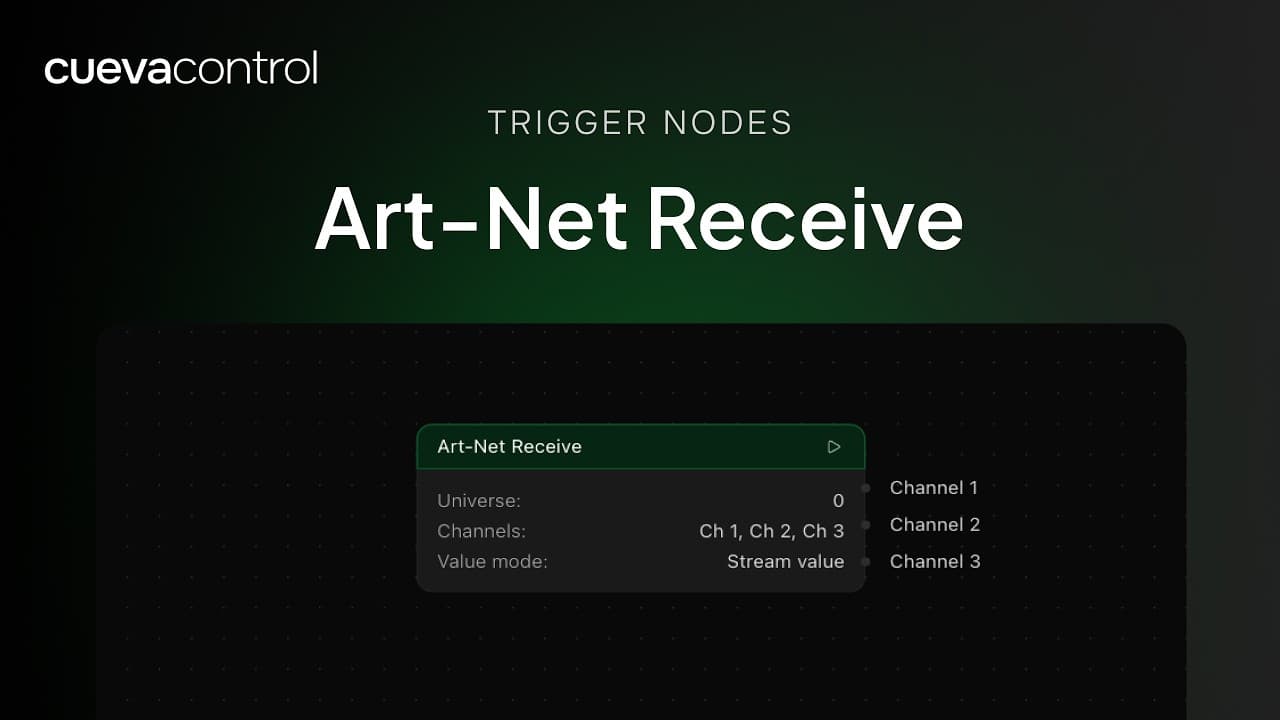

Art-Net Receive
DMX universe frame

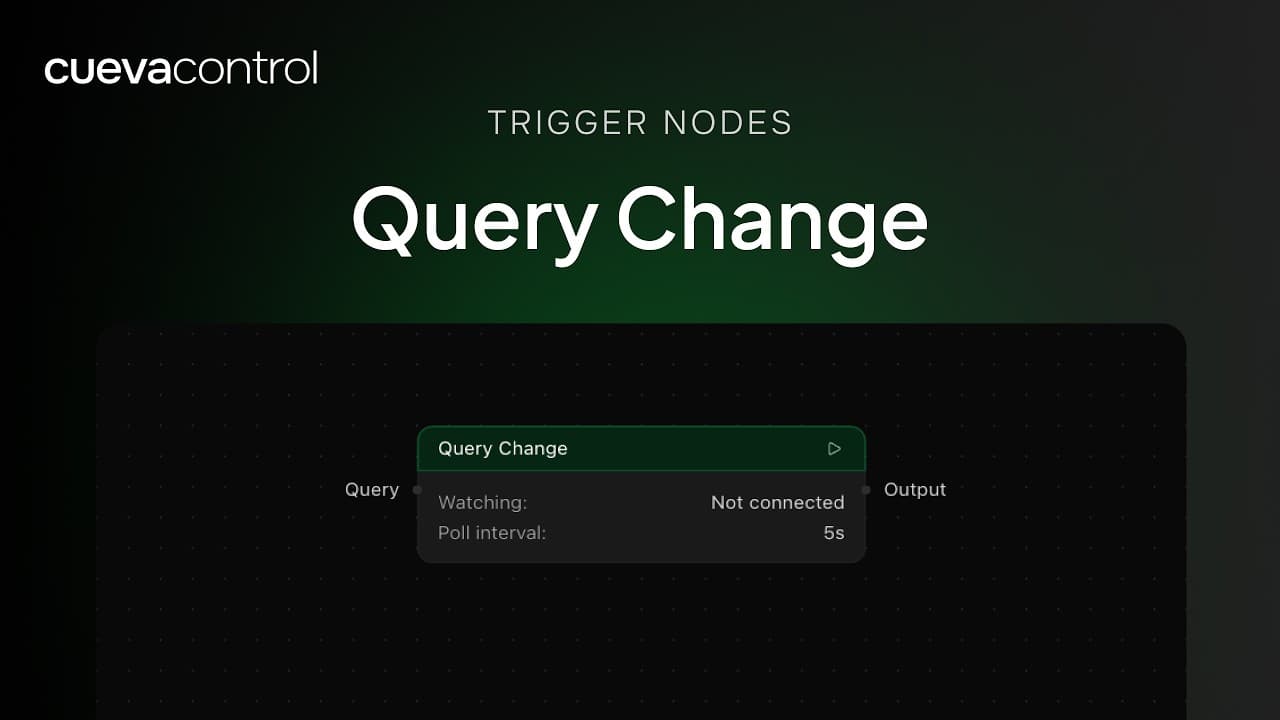

Query Change
Fires when query value changes
RTP MIDI Receive
Incoming MIDI over network

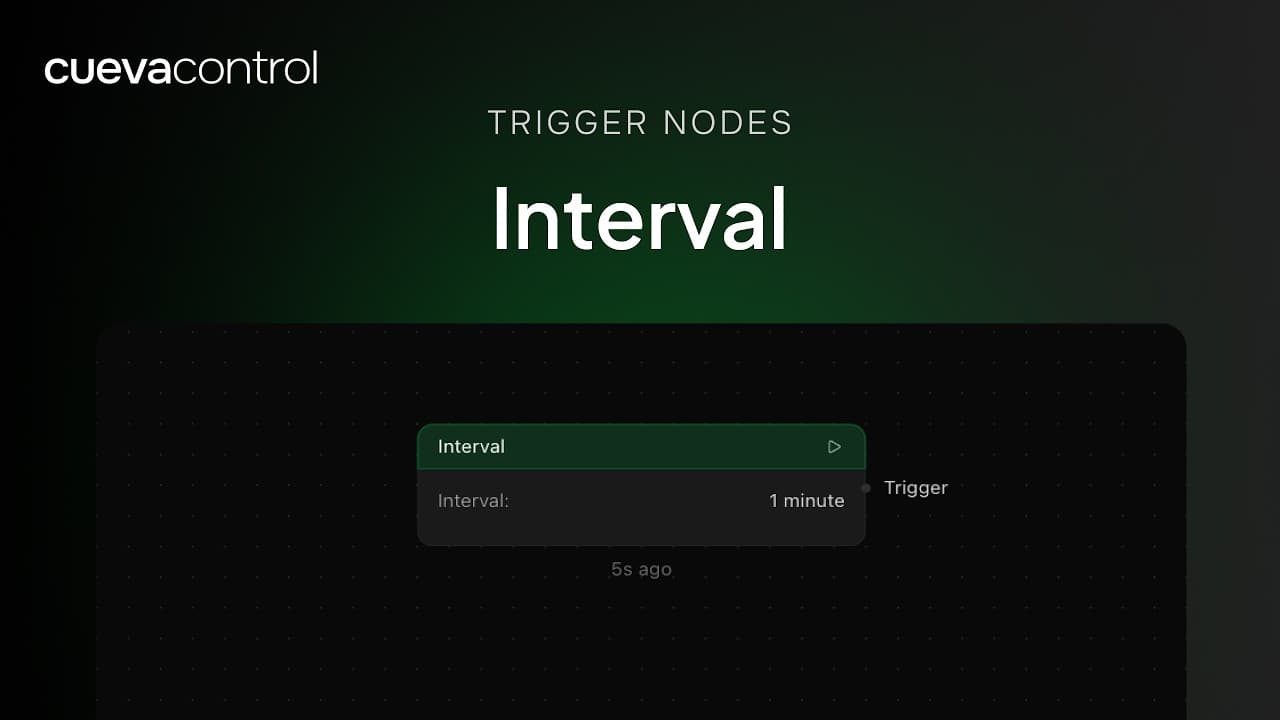

Interval
Repeating timer
Actions

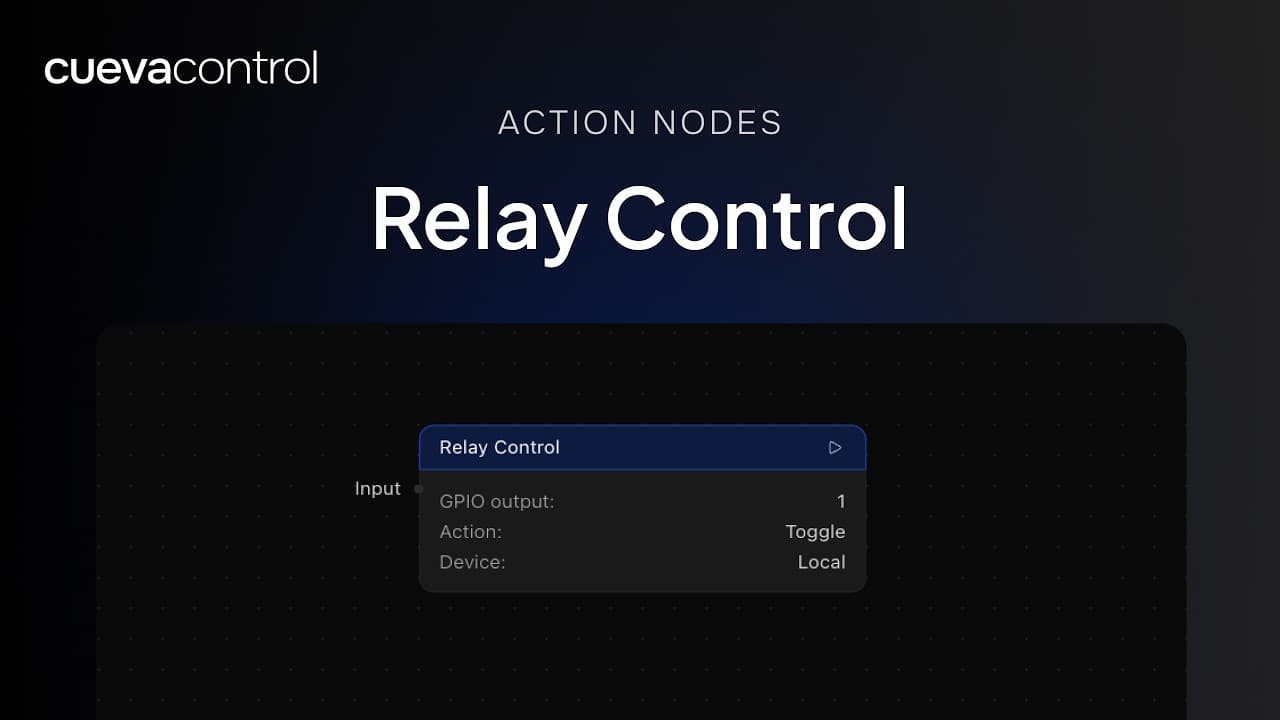

15Relay Control
Set relay output state

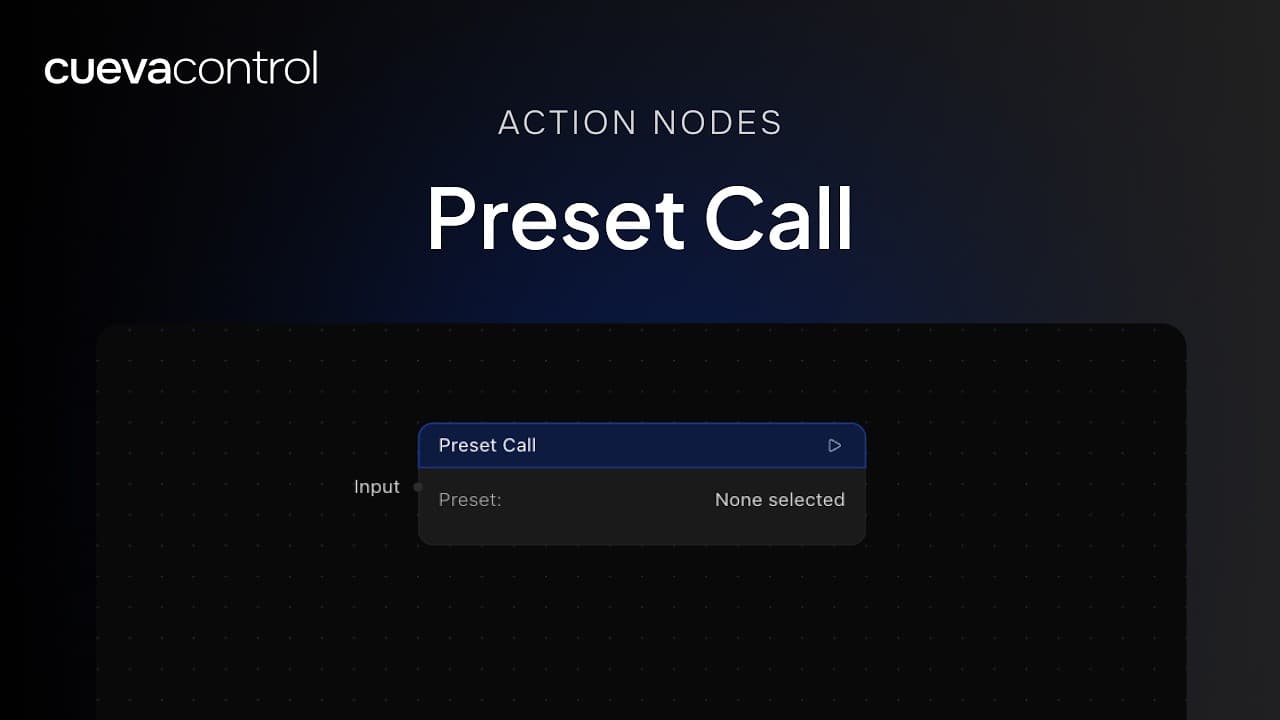

Preset Call
Trigger a saved preset
TCP Message Send
Outbound TCP command
UDP Message Send
Outbound UDP packet

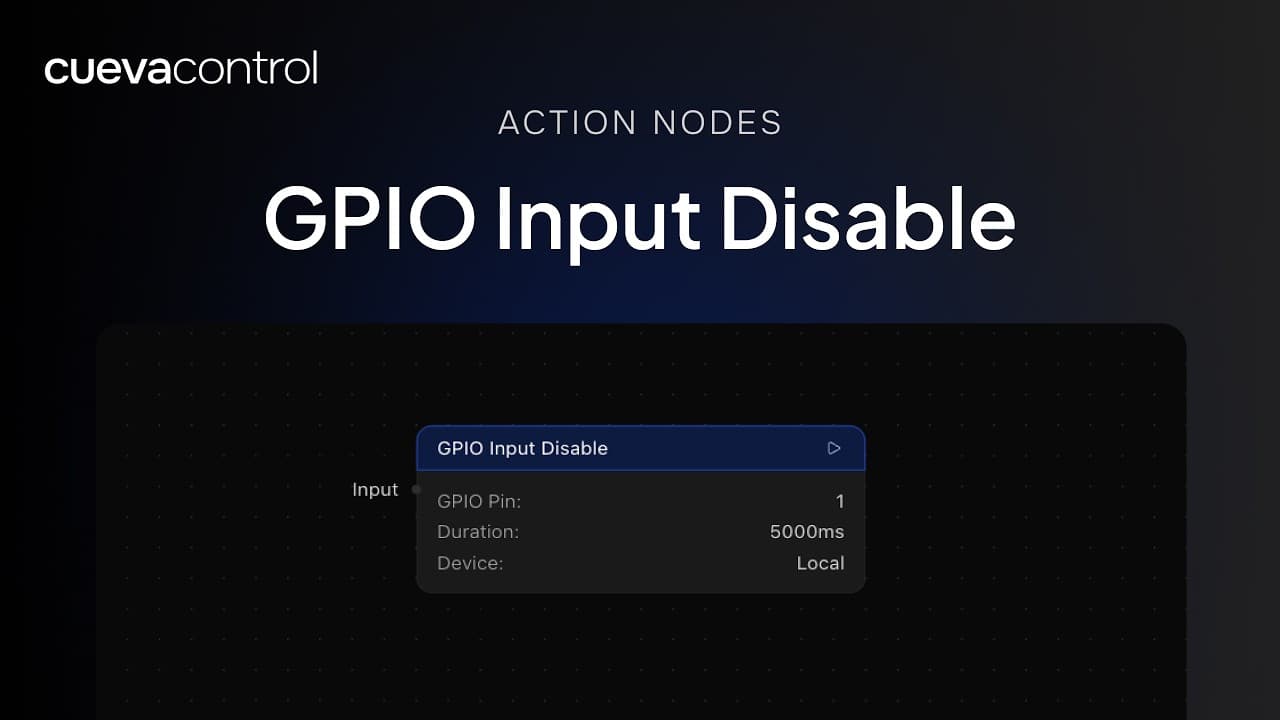

GPIO Input Disable
Enable / disable GPI pin
Webhook Send
Outbound HTTP webhook

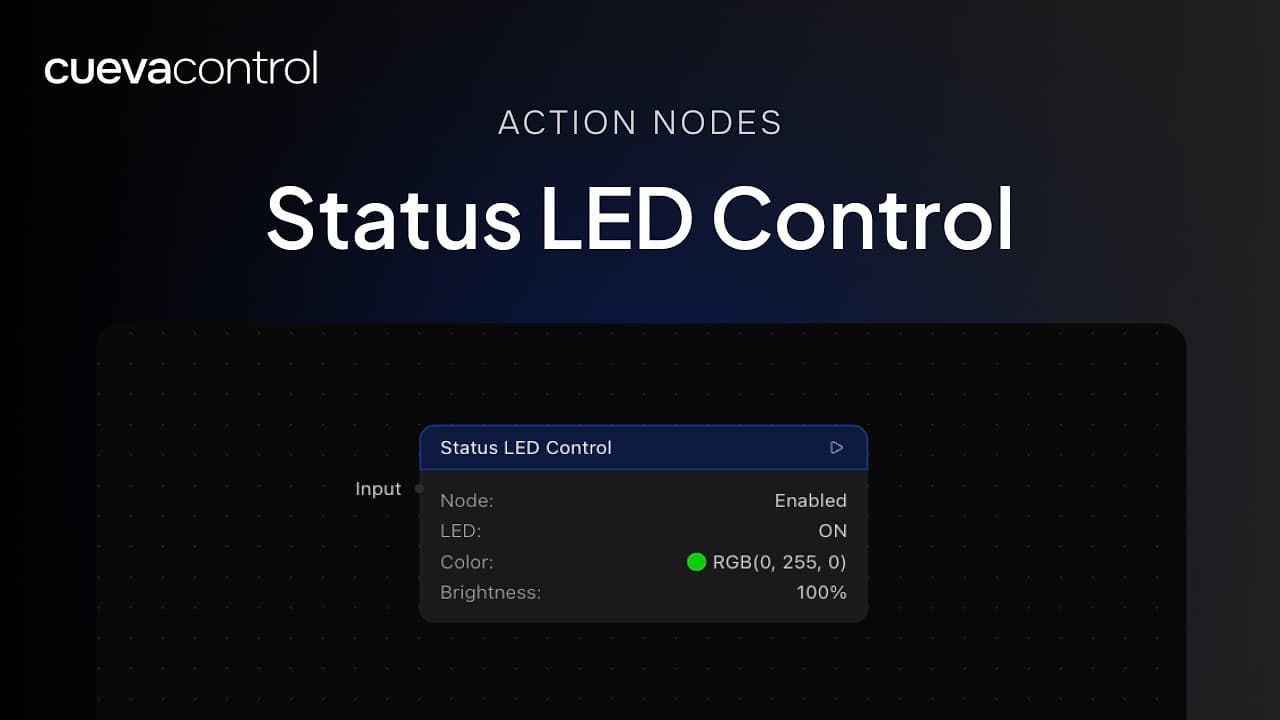

Status LED Control
Set front panel LED colour
HTTP Request
GET / POST / PUT

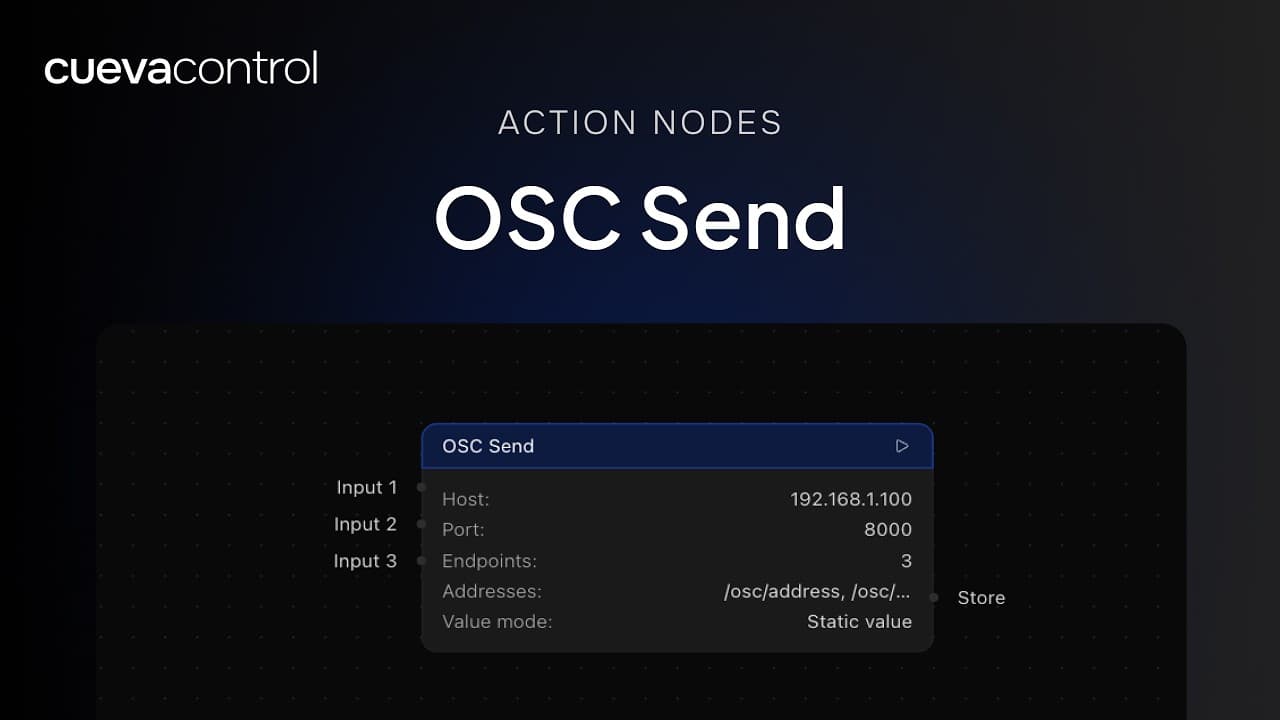

OSC Send
Send OSC address

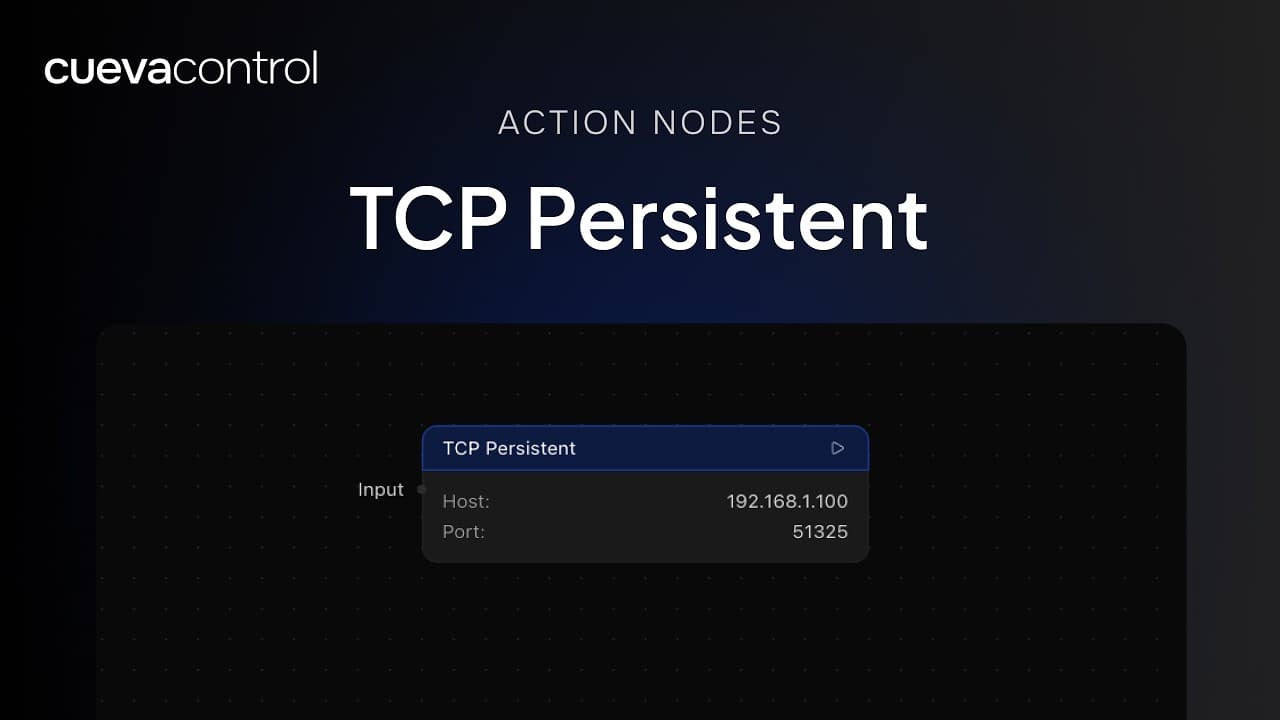

TCP Persistent
Send on persistent connection

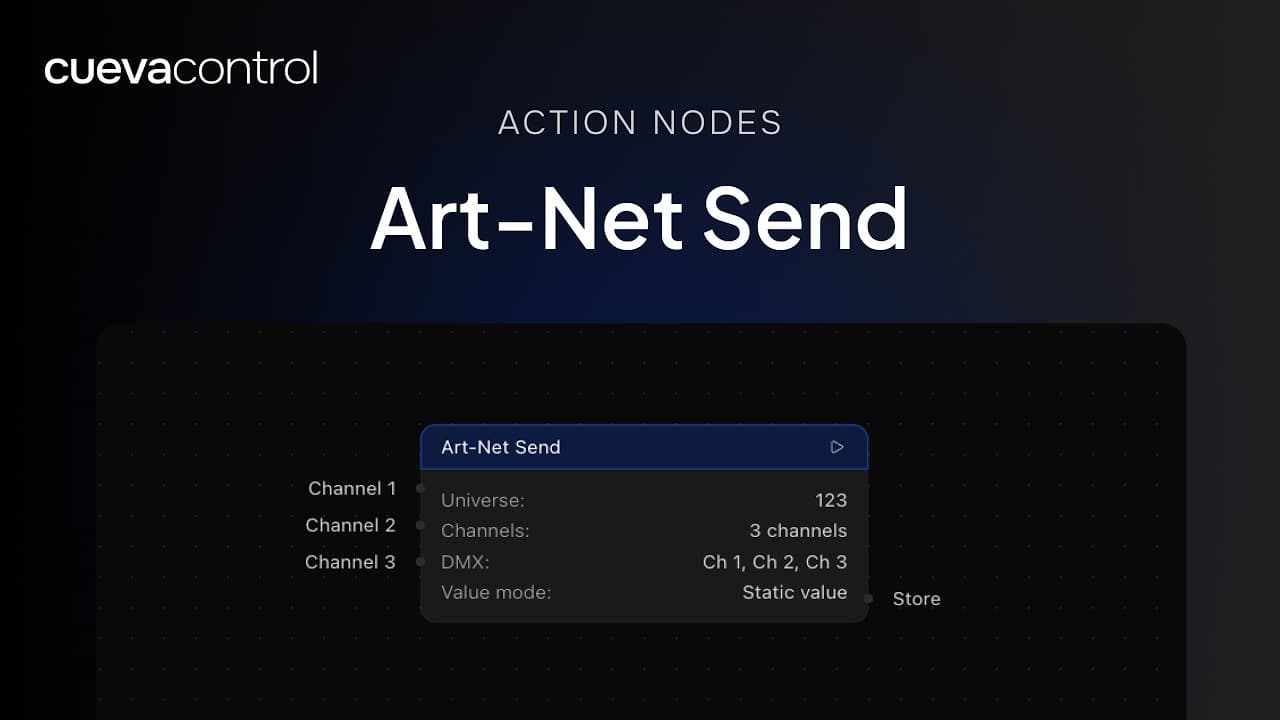

Art-Net Send
DMX cue to console

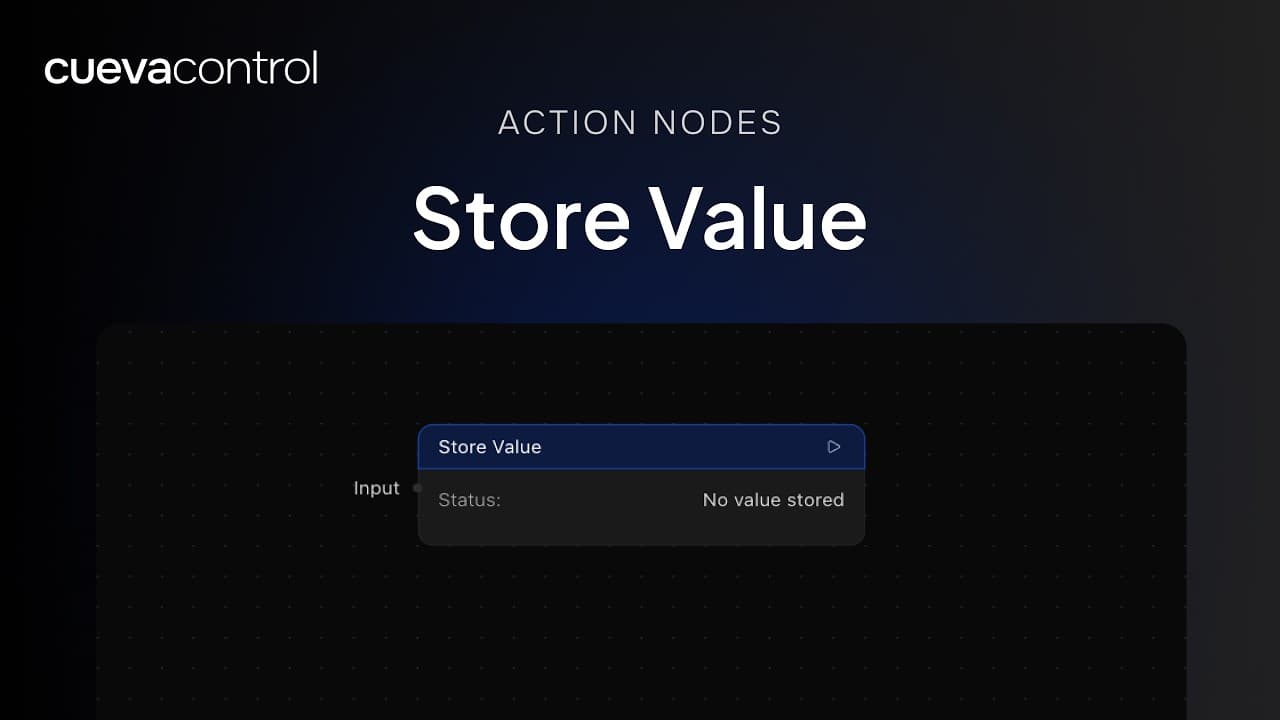

Store Value
Write to a stored variable

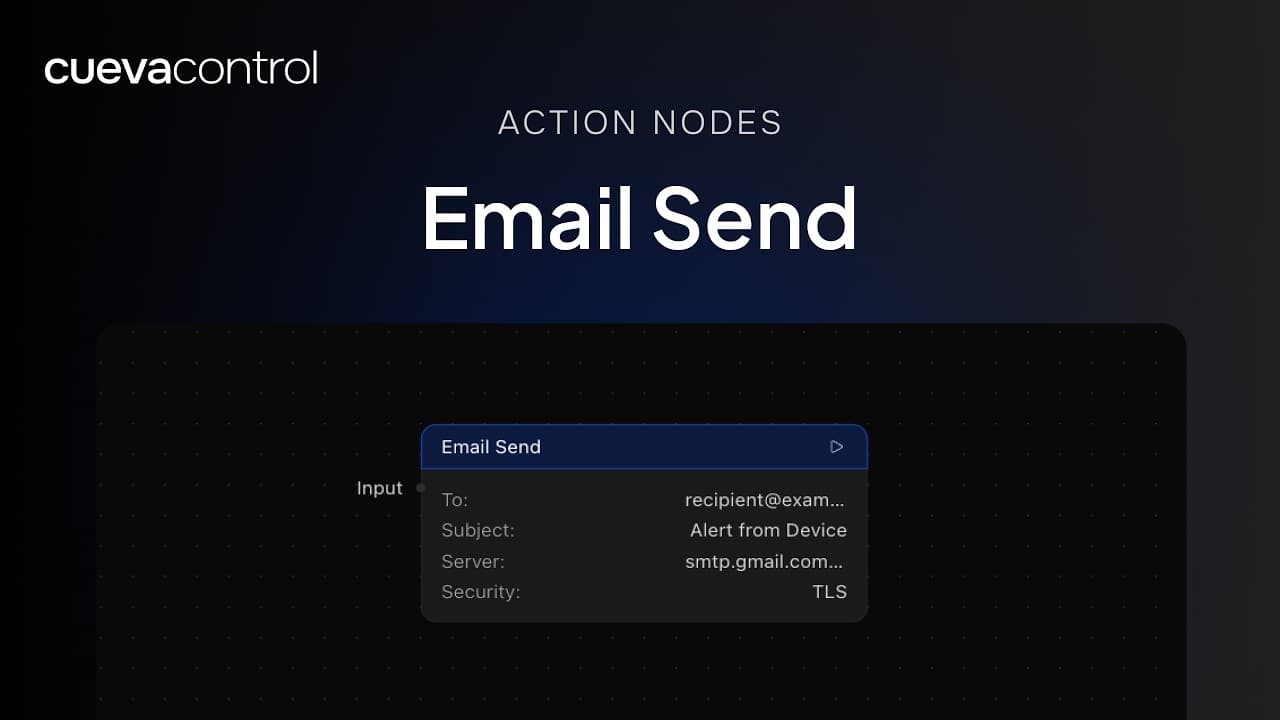

Email Send
Send an email notification

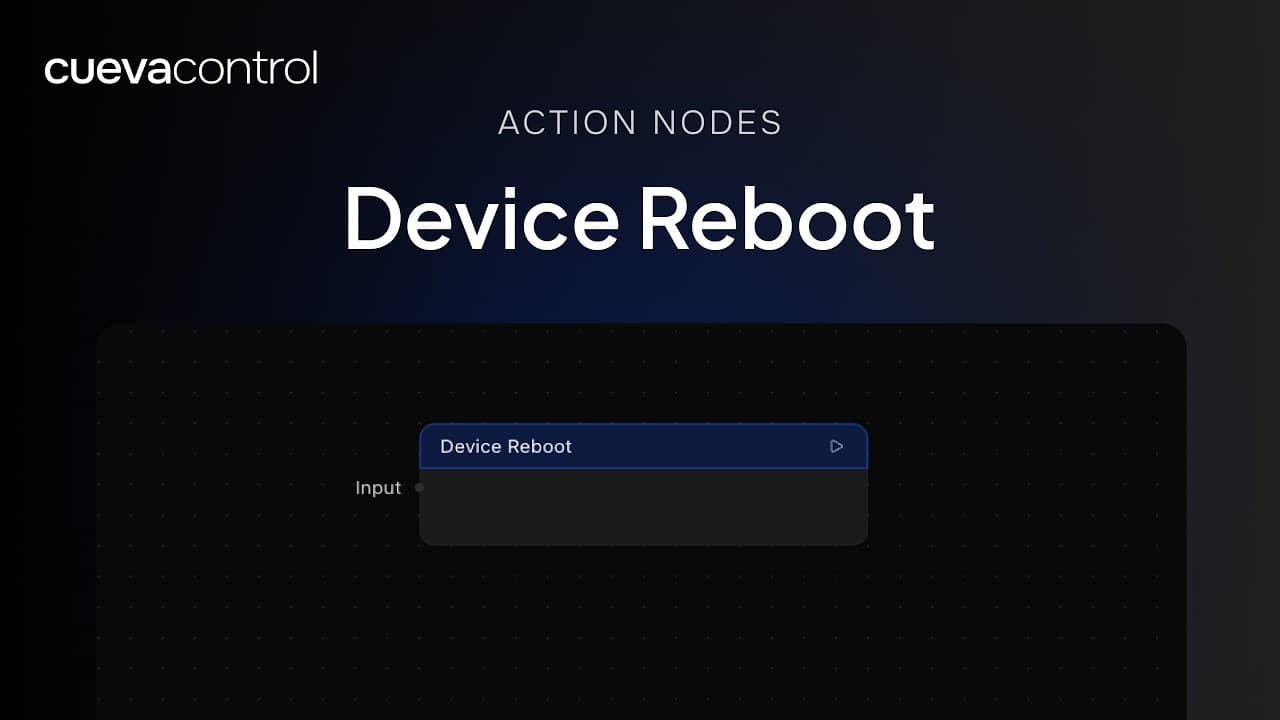

Device Reboot
Restart the device
RTP MIDI Send
Send MIDI over network
Conditions
5Time
Compare current time

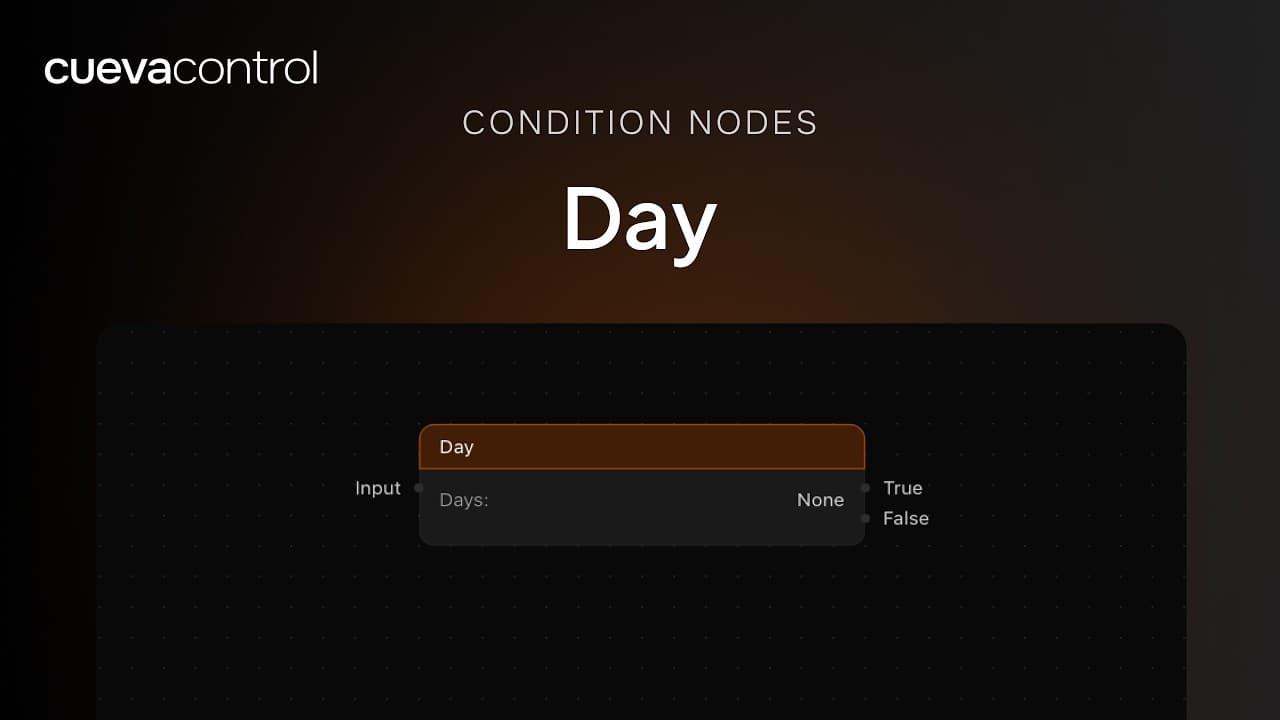

Day
Compare day of week
GPIO State
Check input pin state

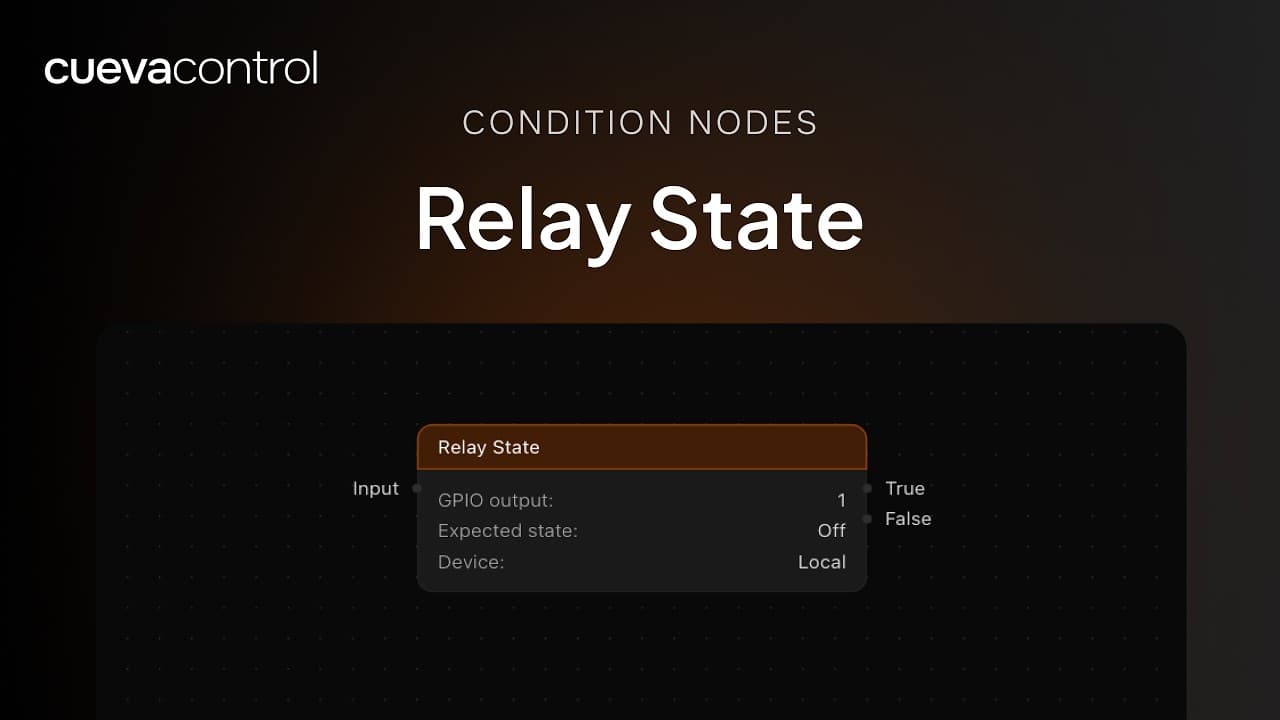

Relay State
Check relay output state

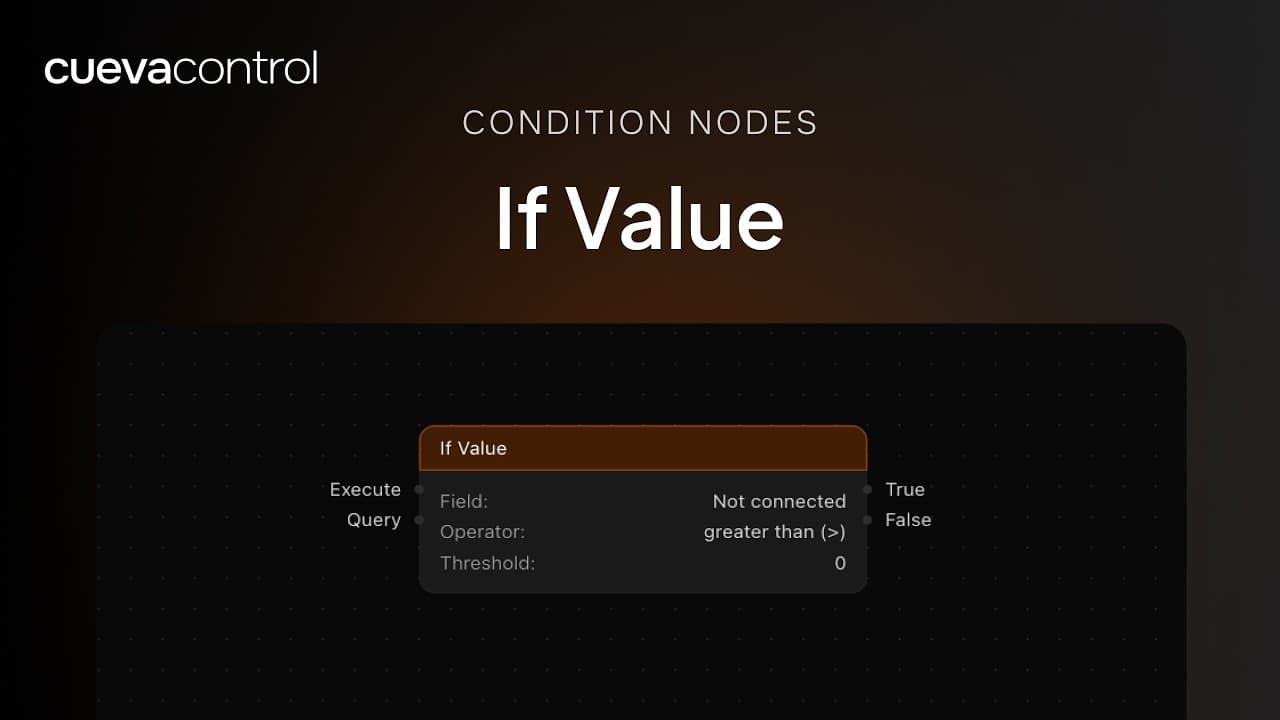

If Value
Compare any value
Execution

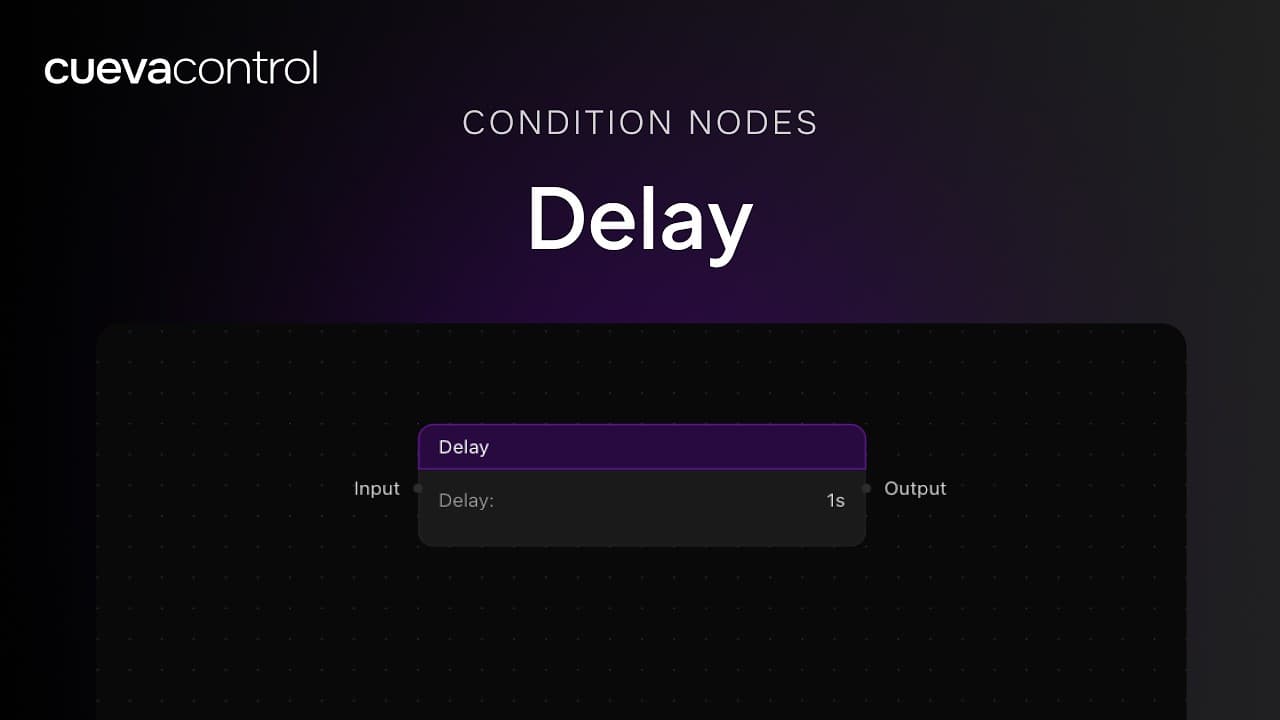

11Delay
Wait N milliseconds

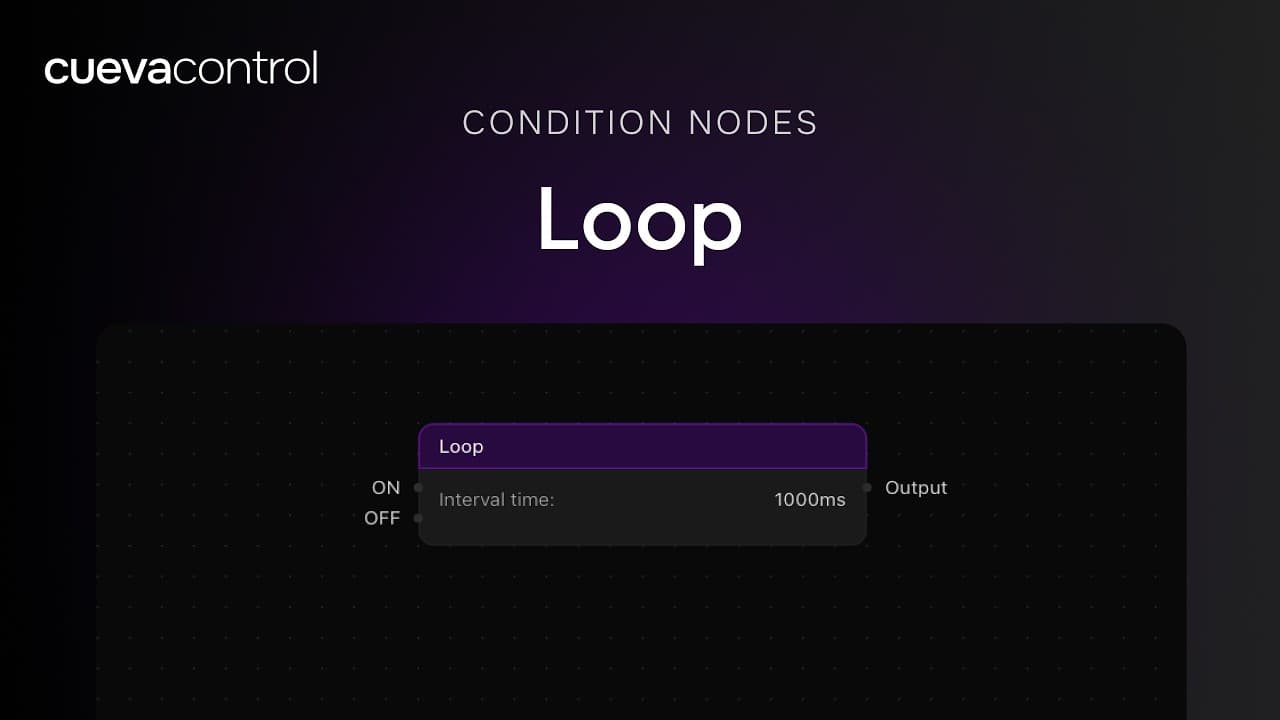

Loop
Repeat while condition true

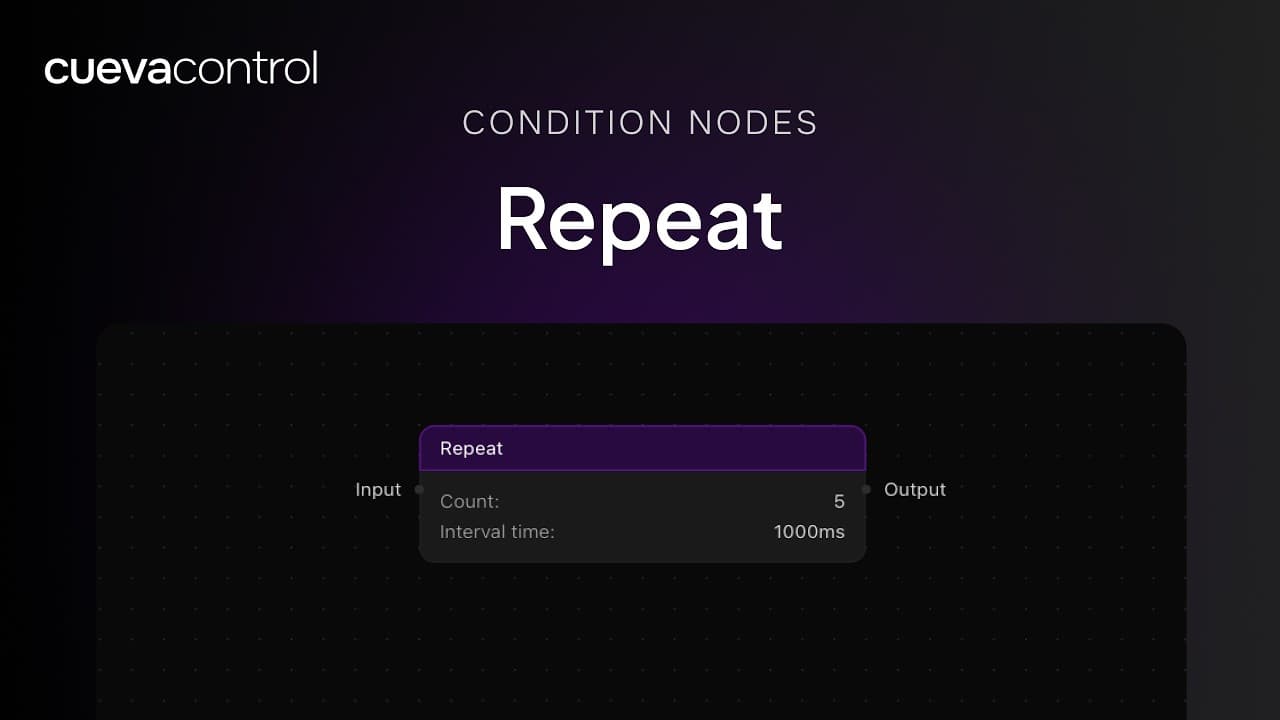

Repeat
Repeat N times

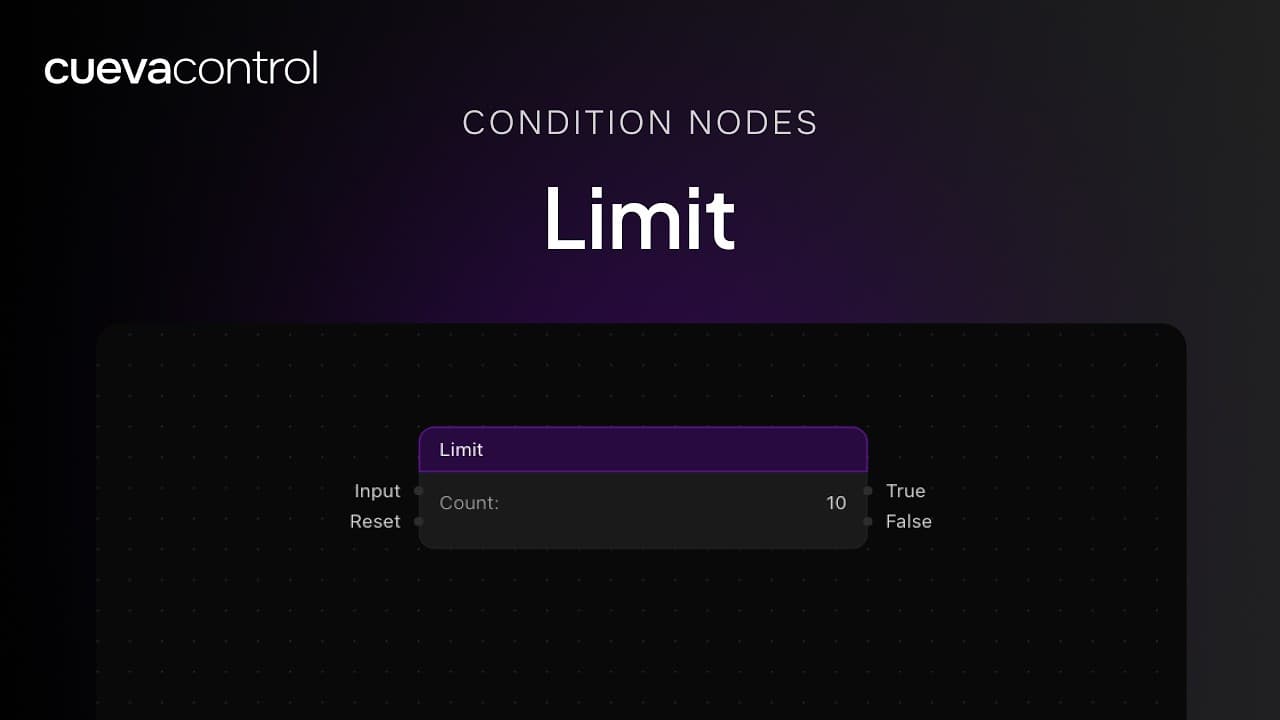

Limit
Rate limit / debounce

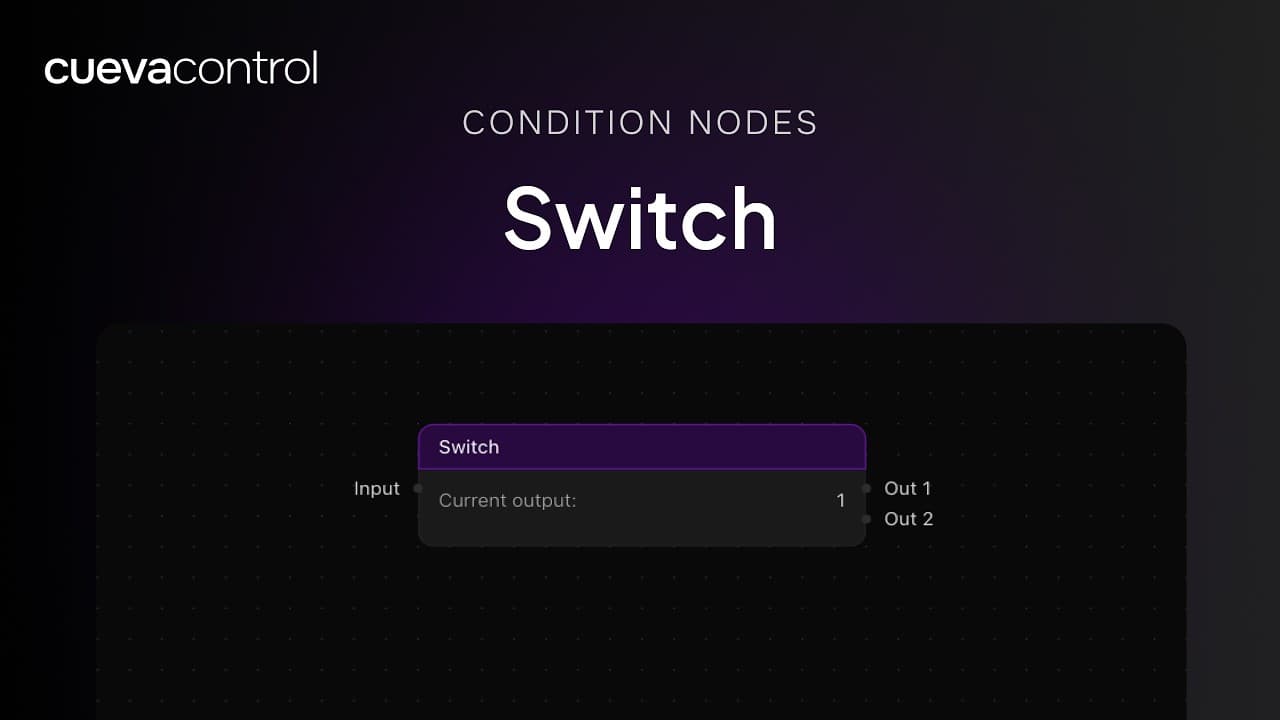

Switch
Multi-branch routing

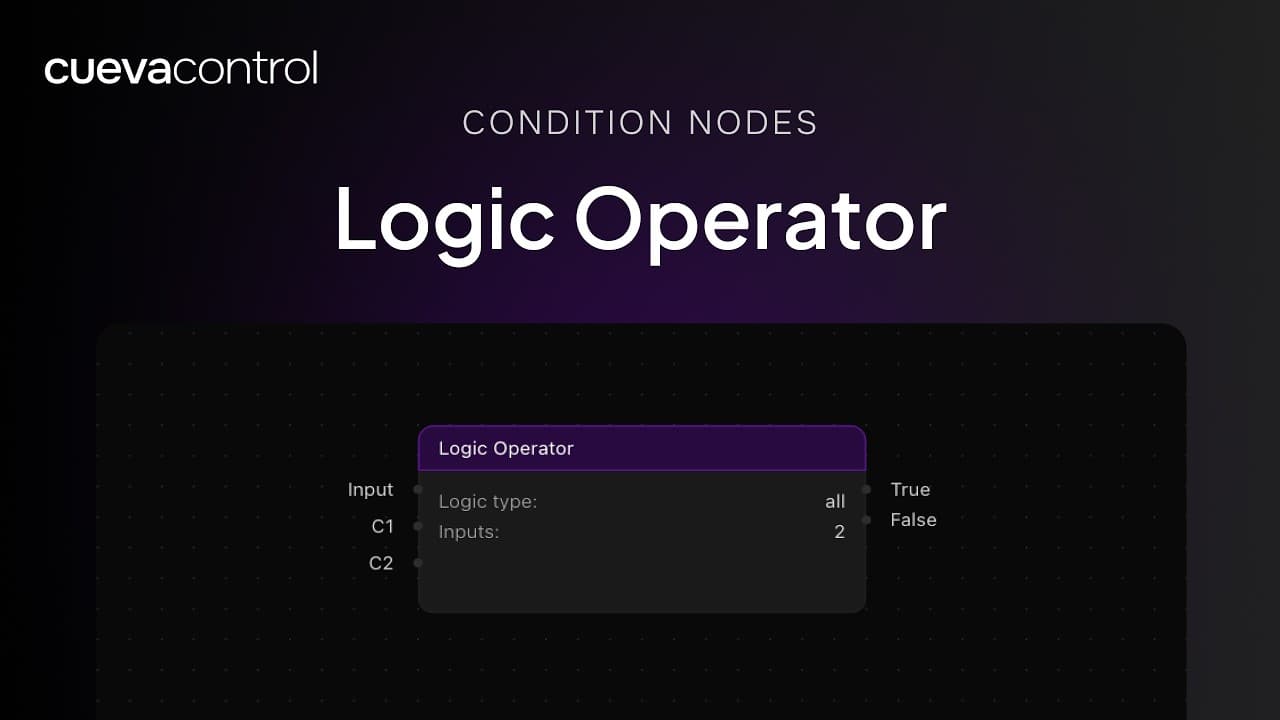

Logic Operator
AND / OR / NOT logic

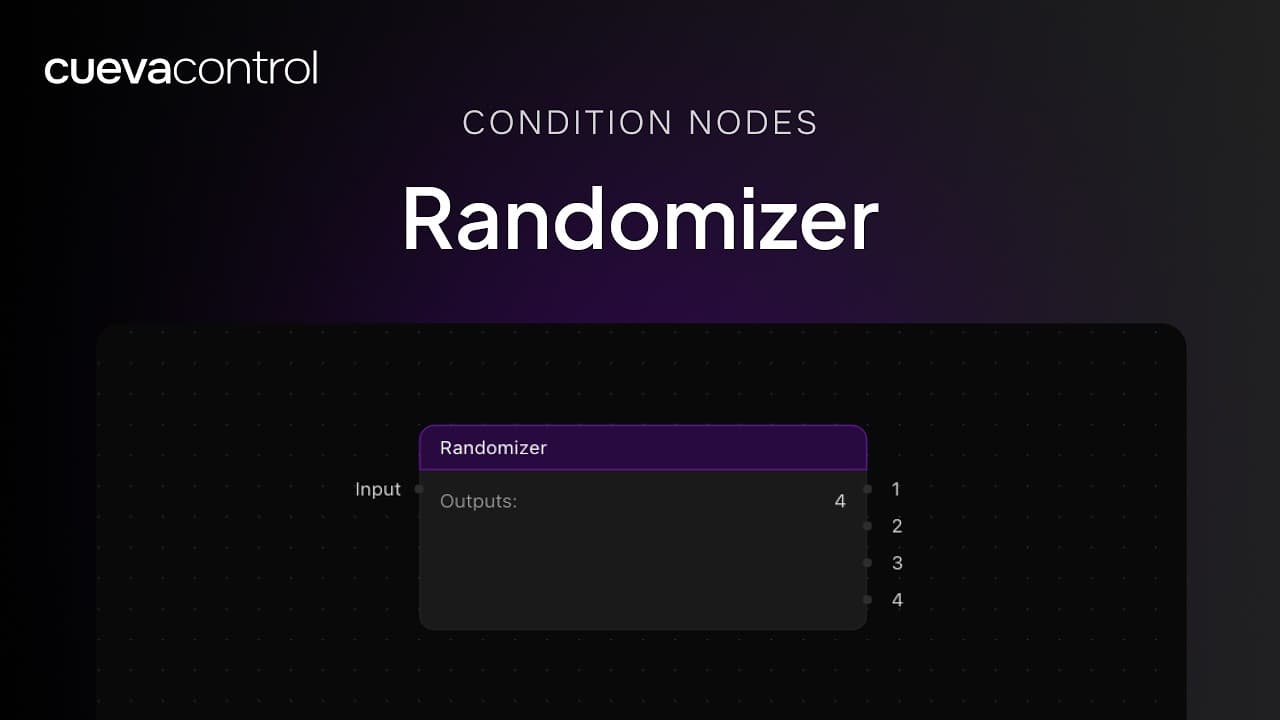

Randomizer
Random value or branch

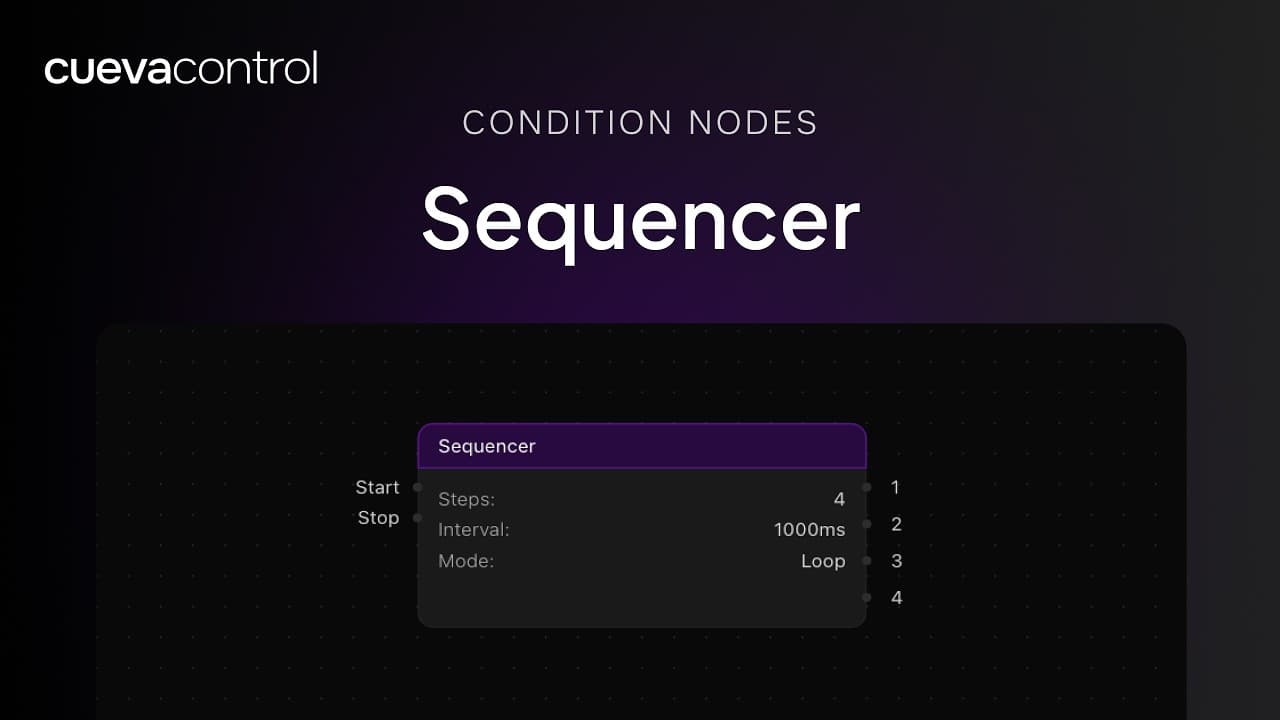

Sequencer
Step through a sequence

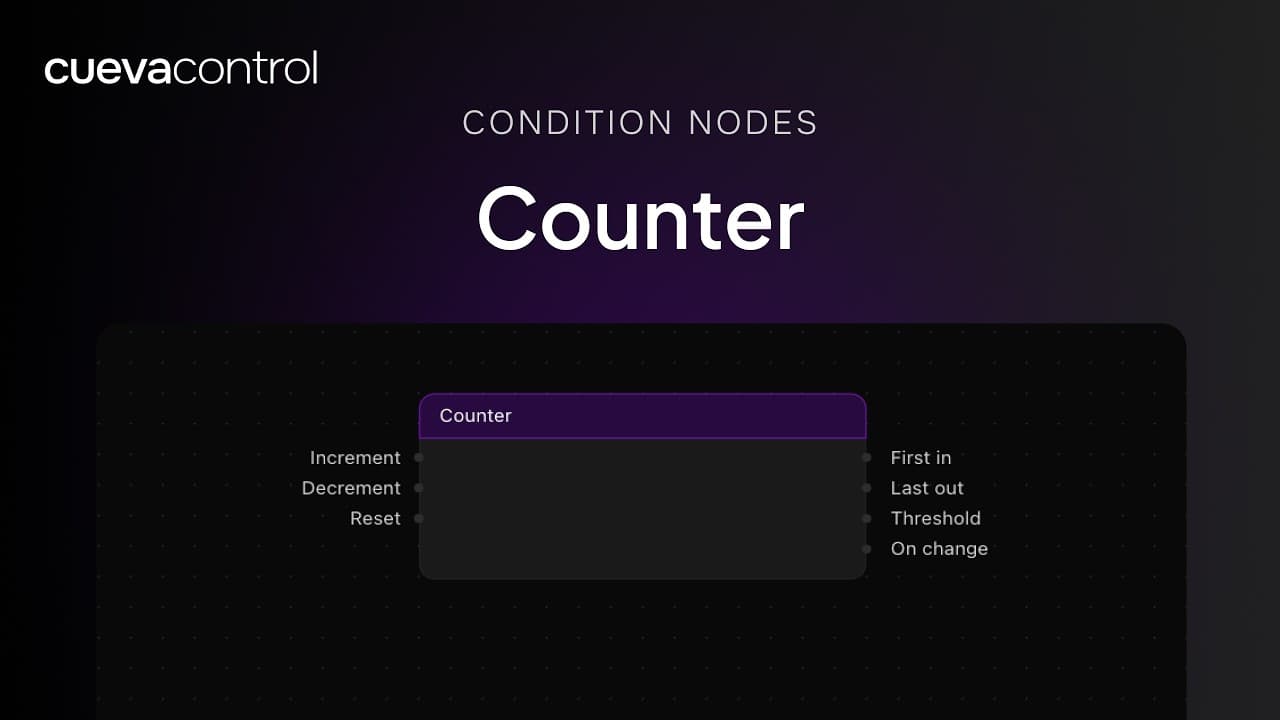

Counter
Count events up or down

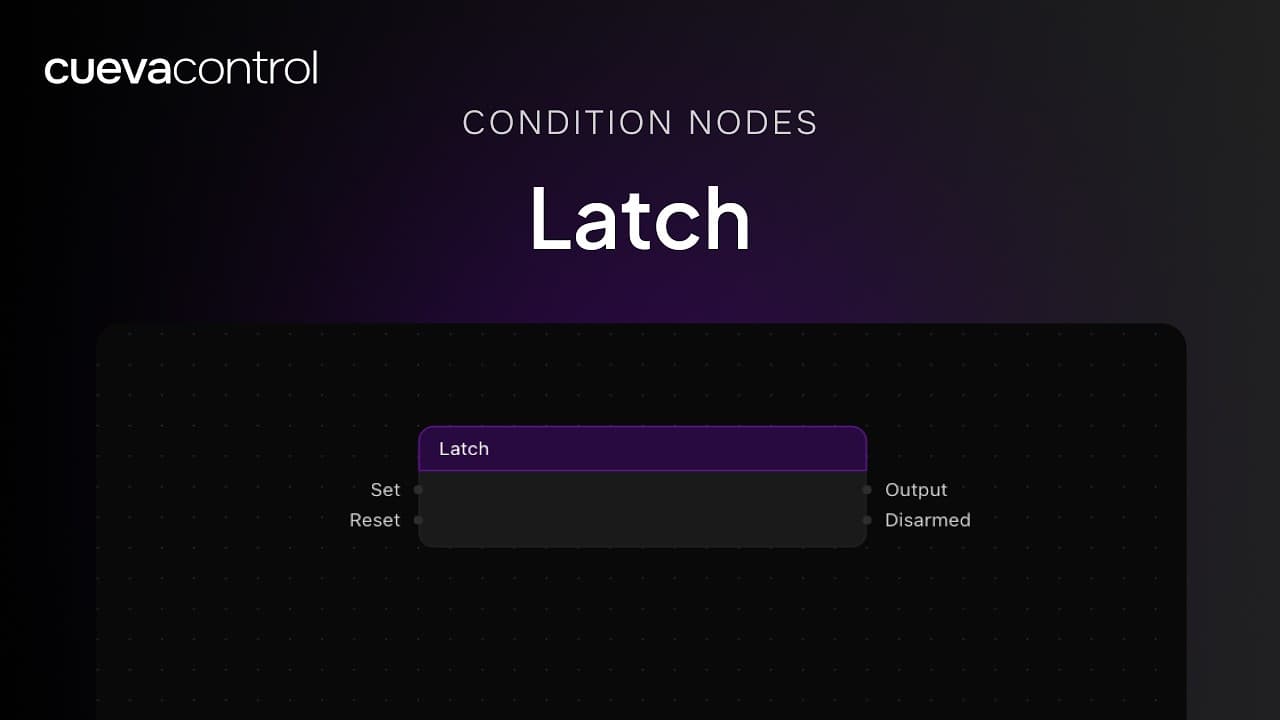

Latch
Hold a state until reset

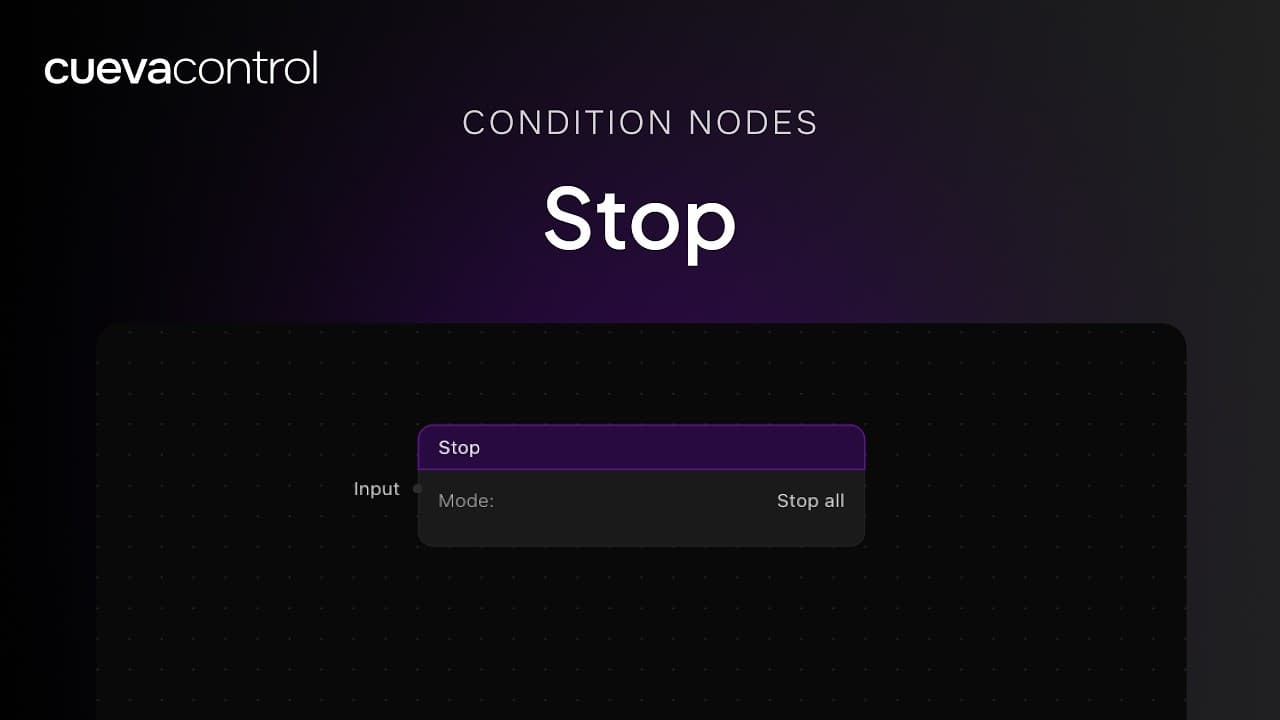

Stop
Halt flow execution
Query

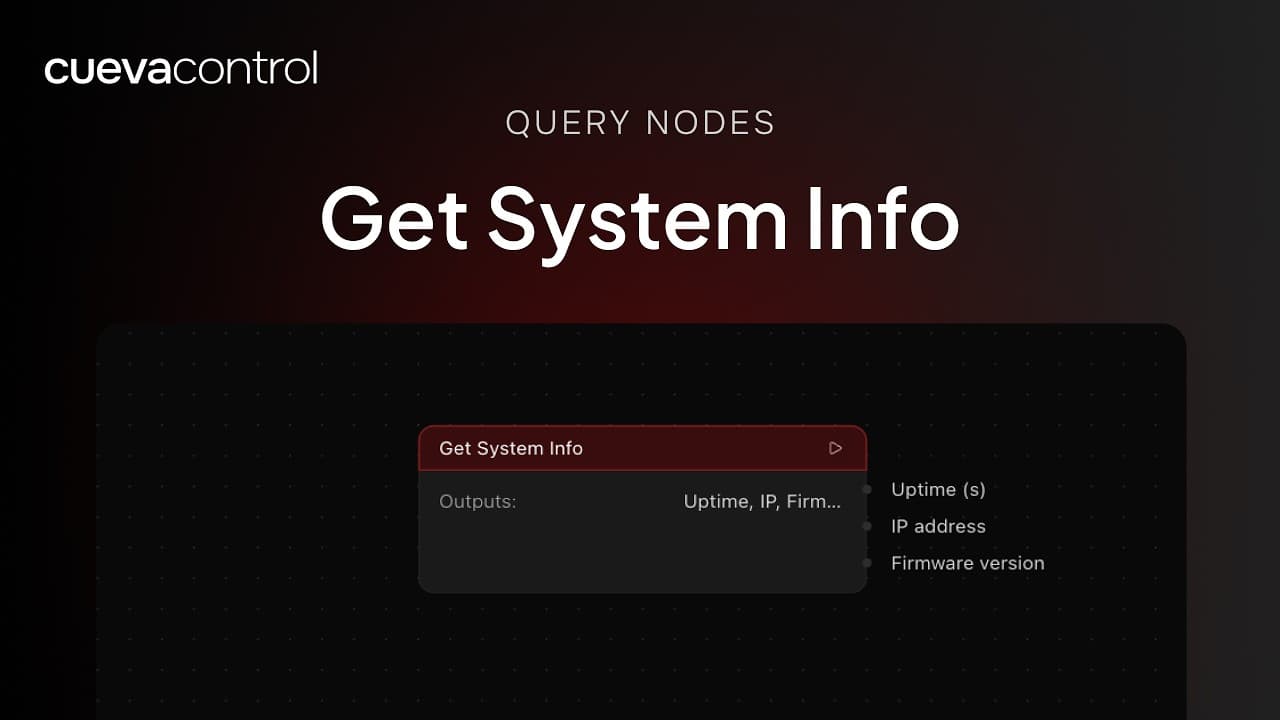

4Get System Info
Read device system data

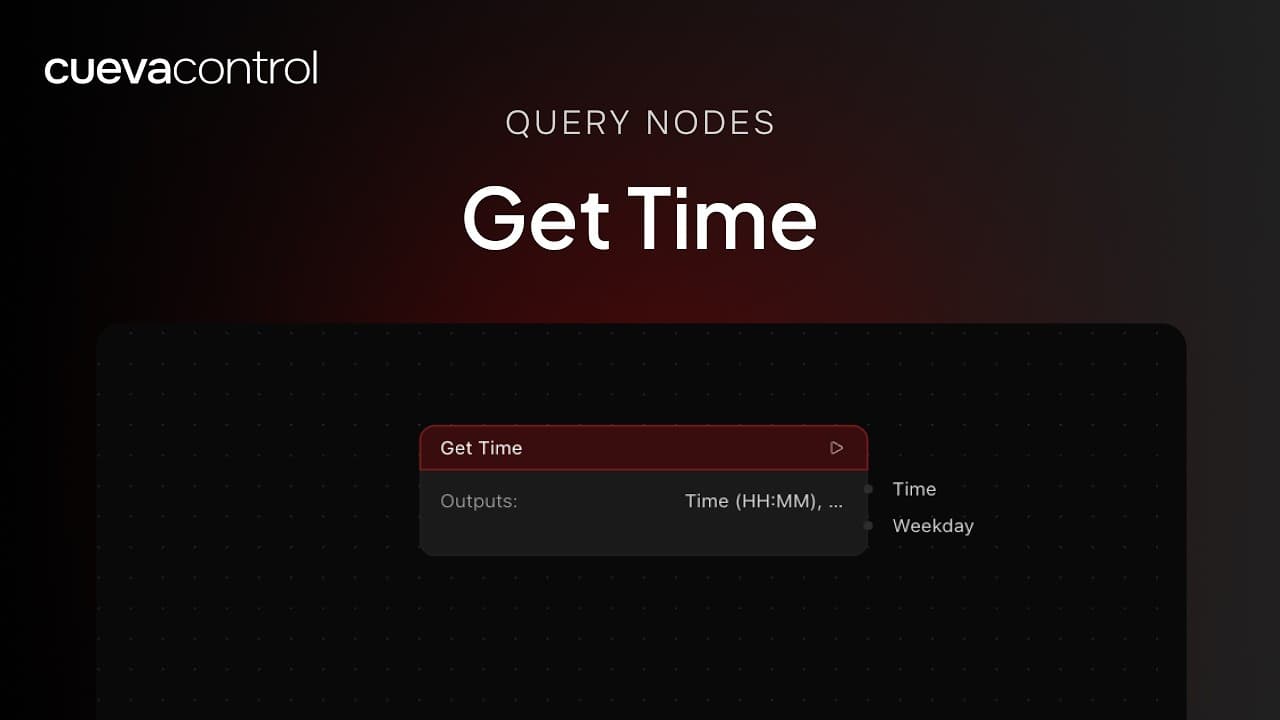

Get Time
Read current time

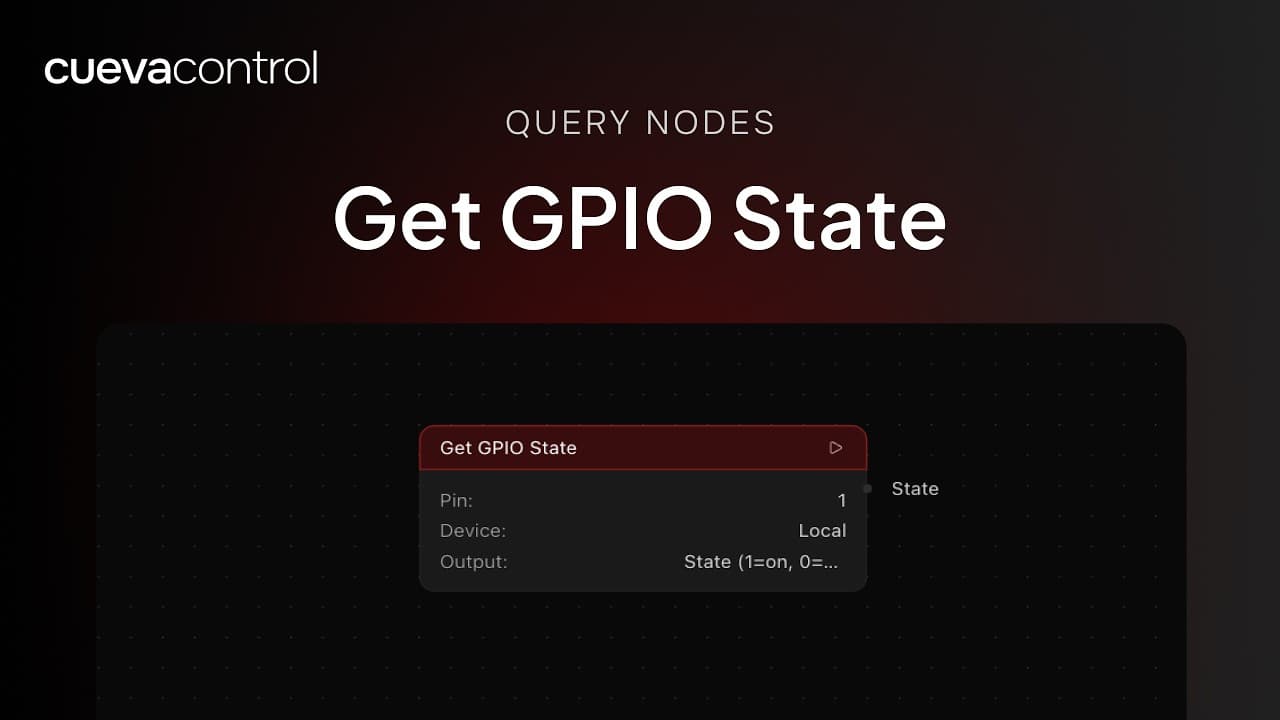

Get GPIO State
Read input pin state

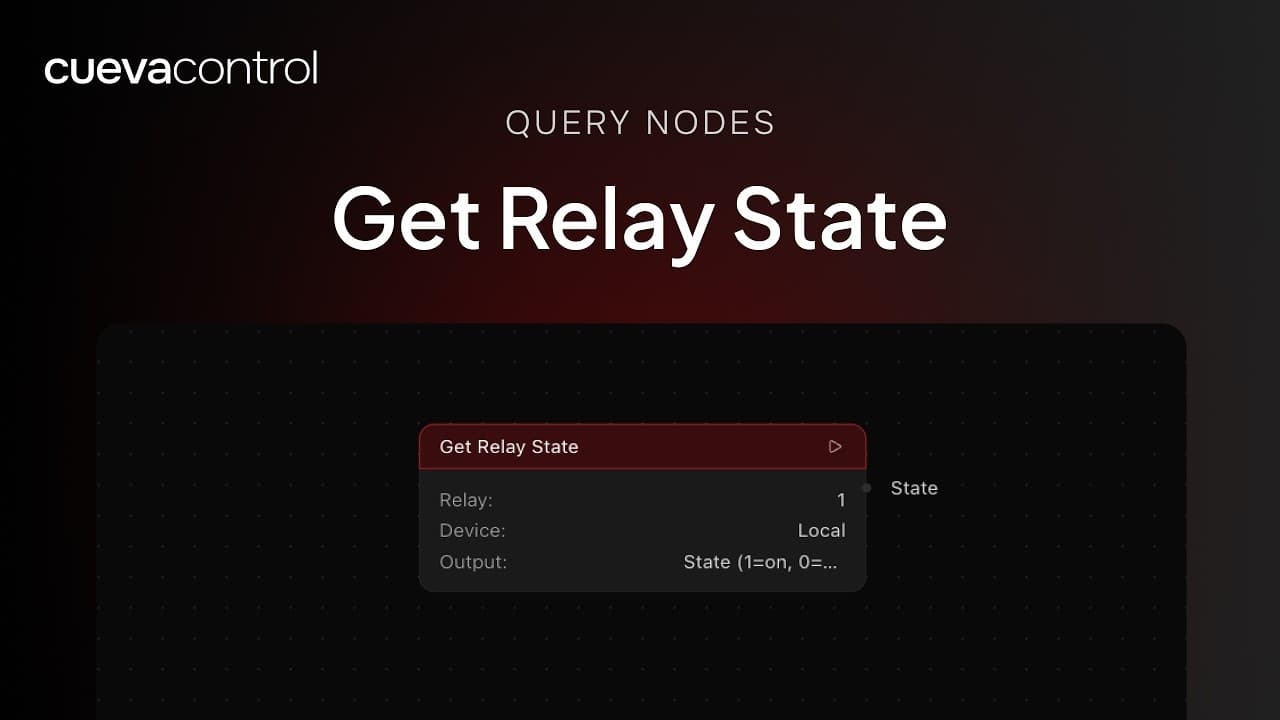

Get Relay State
Read relay output state
Going deeper
The full reference lives in the docs.
These walkthroughs show you what each node does and when to reach for it. Field-by-field reference, wiring rules and worked examples are in the documentation.
Draw a flow with them.

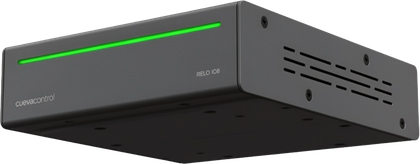

Cueva Desktop is free, on Mac and Windows. You need a RELO IO8 for the logic to have somewhere to live and run.
